9-146280-0 | AMP

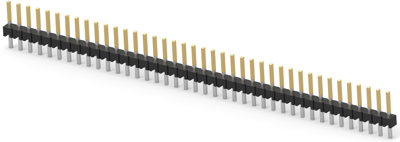

Pin header, 40 pole, pitch 2.54 mm, straight, black, 9-146280-0
Unit Price (€ / pc.)
8.7465 € *
Available in 5 Days: 6,238 pcs. - if ordered today
Total Price:
8.75 € *
Price list
Quantity
Price per unit*
1 pcs.
8.7465 €
10 pcs.
8.1158 €
25 pcs.
7.5803 €
50 pcs.
6.8901 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 9-146280-0, AMP
Board-to-Board, Printed Circuit Board, Breakaway, Vertical, 40 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: LCP (Liquid Crystal Polymer), LCP-GF (Liquid Crystal Polymer)
- Housing Color: black
- Orientation: straight
- Number of positions: 40
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breakable | Yes | |
| Rated current | 3 A | |
| Version | pin header | |
| Number of rows | 1 | |
| Orientation | straight | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Pin number | 40 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes | |
| Contact type | pin | |
| Colour | black | |
| Connection plating | tin-lead | |
| Connection | PCB connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
