87456-5 | AMP

Socket housing, 10 pole, pitch 2.54 mm, straight, black, 87456-5

Order No.: 37P6512
EAN: 4099889962475
MPN:
87456-5
Series: AMPMODU

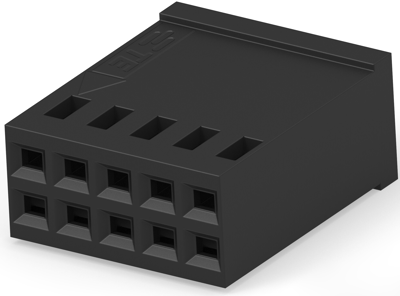

87456-5 AMP PCB Connection Systems Image 1

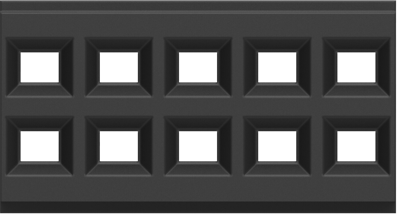

87456-5 AMP PCB Connection Systems Image 2

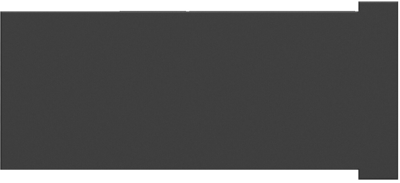

87456-5 AMP PCB Connection Systems Image 3

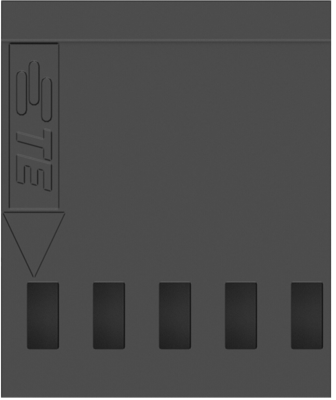

87456-5 AMP PCB Connection Systems Image 4

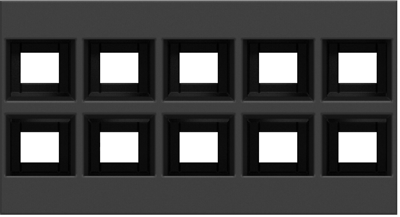

87456-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.2376 € *
Standard delivery time from the manufacturer is: 62 Weeks
Total Price:
7,425.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
6000 pcs.
1.2376 €

PCB Connection System, 87456-5, AMP

Wire-to-Board, Wire & Cable, 10 Position

Technical Data

  • Contact Type: Female
  • Contact Base Material: Beryllium Copper
  • Housing Material: Nylon - GF
  • Housing Color: black
  • Number of positions: 10
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
Technical specifications
Colour black
Rated current 3 A
Grid 2.54 mm
Pin number 10 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 2
Logistics
Country of origin TW
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
