87220-6 | AMP

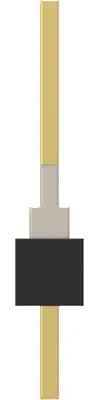

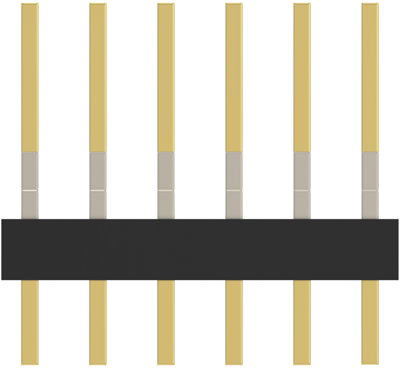

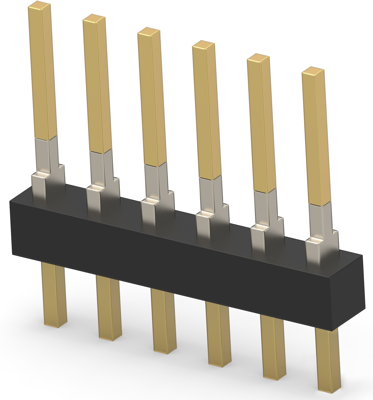

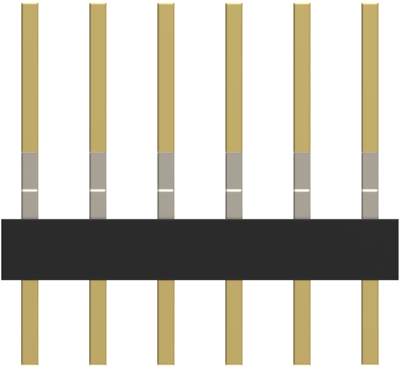

Pin header, 6 pole, pitch 2.54 mm, straight, black, 87220-6
Unit Price (€ / pc.)
1.6065 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
PCB Connection System, 87220-6, AMP
Board-to-Board, Printed Circuit Board, Unshrouded, Vertical, 6 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 6
- Operating Temperature Range: -65 – 105 °C
- Rated current: 3 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Connection | solder pin | |
| Connection plating | gold-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated current | 3 A | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
