829492-4 | AMP

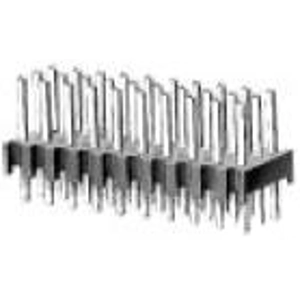

Pin header, 12 pole, pitch 2.54 mm, straight, black, 829492-4
Order No.: 37P8079
EAN: 4099889970517
MPN:
829492-4
Unit Price (€ / pc.)
2.856 € *
Standard delivery time from the manufacturer is: 9 Weeks
PCB Connection System, 829492-4, AMP
Board-to-Board, Printed Circuit Board, Breakaway, Vertical, 12 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass, CuZn
- Housing Material: PCT
- Housing Color: black
- Orientation: straight
- Number of positions: 12
- Operating Temperature Range: -65 – 105 °C
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | equipped | |
| Number of rows | 3 | |
| Connection | solder pin | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Breakable | Yes | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Pin number | 12 pole | |
| Contact type | pin | |
| Grid | 2.54 mm | |
| Rated current | 5 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
