828548-3 | AMP
Pin header, 3 pole, pitch 2.54 mm, straight, ivory, 828548-3
Unit Price (€ / pc.)
0.6188 € *
Available: 533 pcs.
Available in 5 Days: 11,851 pcs. - if ordered today
Total Price:
0.62 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6188 €
10 pcs.
0.4522 €
50 pcs.
0.3570 €
100 pcs.
0.2773 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers, type TE Connectivity/AMP.

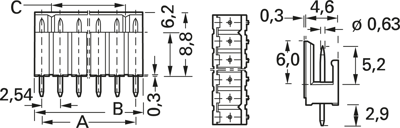

With 2.54 mm grid, for PCB mounting. Corresponding AMP-Quick socket headers; Housing: polyester GV, compliant with UL 94 V-0. Color: ivory. Contacts: CuSn. Version: 2.5 µ tinned or 0.8 µ gold-plating on nickel primer. Insertion frequency tinned/gold-plated: 25/250 cycles. Rated current: max. 3.0 A. Operating voltage: max. 125 V. Operating temperatures: –40 to +85 °C. Dimension calculation: dimension A: (number of poles - 1) x 2.54 mm, dimension B: A + 2.04 mm, dimension C as from 3 poles: (number of poles - 2) x 2.54 mm.
Straight, tinned, type ..-0828.
Type: 0-0828548-3, 3-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 1 | |
| Pin number | 3 pole | |
| Connection plating | tin-plated | |
| Additional parts | equipped | |
| Colour | ivory | |
| contact surface | tin-plated | |
| Orientation | straight | |
| Grid | 2.54 mm | |
| Type of locking | Yes | |
| Contact type | pin | |
| Breakable | No | |
| Rated current | 3 A | |
| Connection | PCB connection | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
