826949-3 | AMP

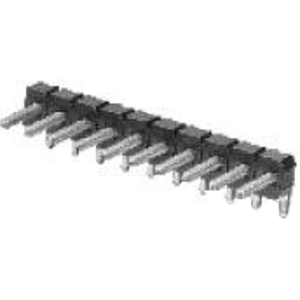

Pin header, 3 pole, pitch 2.54 mm, angled, green, 826949-3
Order No.: 37P8040
EAN: 4099889970302
MPN:
826949-3
Unit Price (€ / pc.)
0.2582 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
0.26 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2582 €
10 pcs.
0.2404 €
25 pcs.
0.2237 €
50 pcs.
0.2035 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 826949-3, AMP
Board-to-Board, Printed Circuit Board, Breakaway, Right Angle, 3 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: PBT GV
- Housing Color: green
- Orientation: angled
- Number of positions: 3
- Operating Temperature Range: -65 – 105 °C
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | tin-plated | |
| Pin number | 3 pole | |
| Breakable | Yes | |
| Type of locking | Yes | |
| Connection plating | tin-plated | |
| Orientation | angled | |
| Contact type | pin | |
| Grid | 2.54 mm | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Connection | solder pin | |
| Rated current | 5 A | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | NL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
