826947-4 | AMP

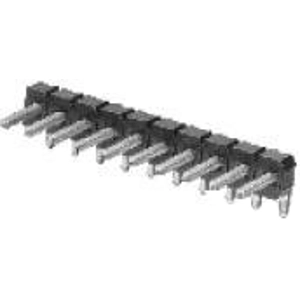

Pin header, 4 pole, pitch 2.54 mm, angled, green, 826947-4
Unit Price (€ / pc.)
0.4284 € *
Available in 5 Days: 3,776 pcs. - if ordered today
Total Price:
2.14 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4284 €
10 pcs.
0.4046 €
25 pcs.
0.3689 €
50 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 826947-4, AMP
Board-to-Board, Printed Circuit Board, Breakaway, Right Angle, 4 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: PBT GV
- Housing Color: green
- Orientation: angled
- Number of positions: 4
- Operating Temperature Range: -65 – 105 °C
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breakable | Yes | |
| Number of rows | 1 | |
| Rated current | 5 A | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Grid | 2.54 mm | |
| Pin number | 4 pole | |
| Orientation | angled | |
| Additional parts | equipped | |
| Type of locking | Yes | |
| Connection | solder pin | |
| contact surface | tin-plated | |
| Colour | green | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
