826926-8 | AMP
Pin header, 8 pole, pitch 2.54 mm, straight, green, 826926-8
Unit Price (€ / pc.)
1.6184 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
1.62 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6184 €
10 pcs.
1.4756 €
50 pcs.
1.3566 €
100 pcs.
1.2138 €
*incl. VAT plus shipping costs
Subject to prior sale
Single-row pin headers for PCB mounting, type TE Connectivity/AMP Modu II ..-0826.
With 2.54 mm grid. For Modu IV socket headers without interlock. Insulated housing made of thermoplastic polyester, green, compliant with UL 94 V-0; Contact types: tin bronze contacts, 0.8 µ selective gold-plated on nickel primer (dimension F) and tinned soldering side or brass contacts with tinned contact and solder area. The number of contacts can be reduced as required by breaking them off.

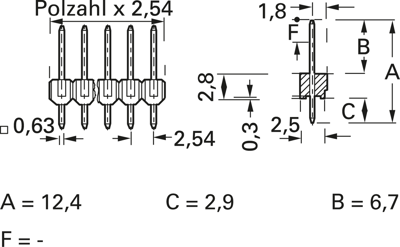

Tinned, pin length B 6.7 mm, type ..-0826.
Tinned pins (2.0 µm tin over 1.3 µm Ni); Dimension A: 12.4 mm. Dimension C: 2.9 mm.
Type: 0-0826926-8, 8-pole
Technical specifications
| Connection plating | tin-plated | |
| Version | pin header | |
| Breakable | Yes | |
| contact surface | tin-plated | |
| Connection | PCB connection | |
| Contact type | pin | |
| Additional parts | equipped | |
| Rated current | 5 A | |
| Pin number | 8 pole | |
| Colour | green | |
| Type of locking | Yes | |
| Orientation | straight | |
| Number of rows | 1 | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
