826646-2 | AMP

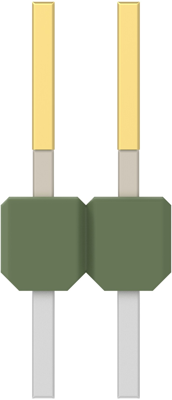

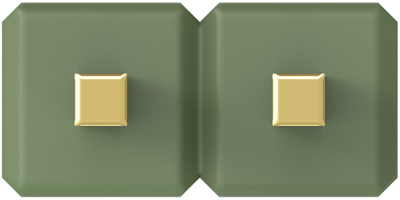

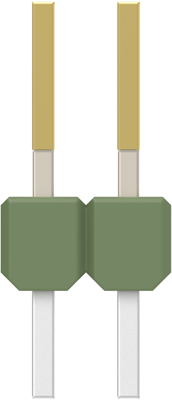

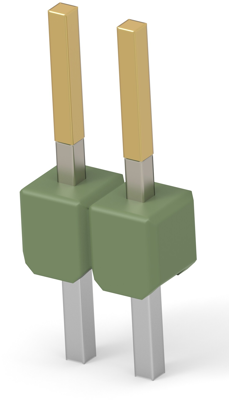

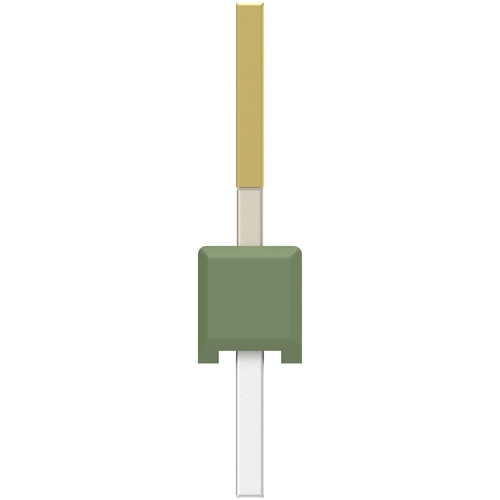

Pin header, 2 pole, pitch 2.54 mm, straight, green, 826646-2
Single-row pin headers for PCB mounting, type TE Connectivity/AMP Modu II ..-0826.
With 2.54 mm grid. For Modu IV socket headers without interlock. Insulated housing made of thermoplastic polyester, green, compliant with UL 94 V-0; Contact types: tin bronze contacts, 0.8 µ selective gold-plated on nickel primer (dimension F) and tinned soldering side or brass contacts with tinned contact and solder area. The number of contacts can be reduced as required by breaking them off.
Gold-plated, pin length B 5.8 mm, type ..-0826.
With straight solder pins. Pins gold-plated in the contact area (0.8 µm Au over 1.3 µm Ni), tinned in the solder area (2.5 µm Sn over 1.3 µm Ni); Dimension A: 11.5 mm. Dimension C: 2.9 mm. Dimension F: 4.4 mm.
Type: 0-0826646-2, 2-pole
| Filter | Property | Value |
|---|---|---|
| Pin number | 2 pole | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Contact type | pin | |
| Grid | 2.54 mm | |
| Connection plating | tin-plated | |
| Rated current | 5 A | |
| Colour | green | |
| Additional parts | equipped | |
| Connection | PCB connection | |
| Version | pin header | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Breakable | Yes |
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | TH |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
