826634-6 | AMP

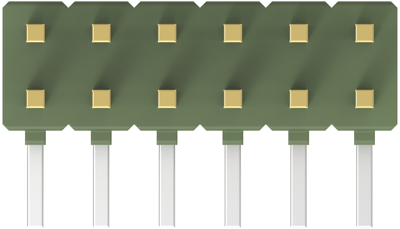

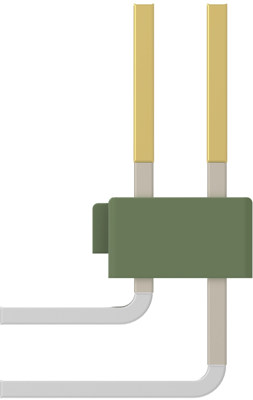

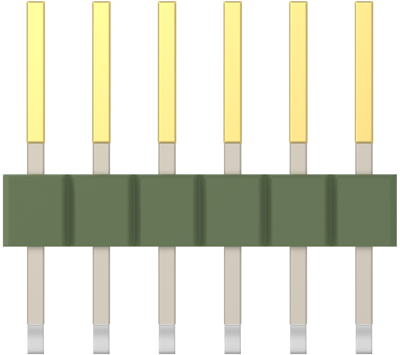

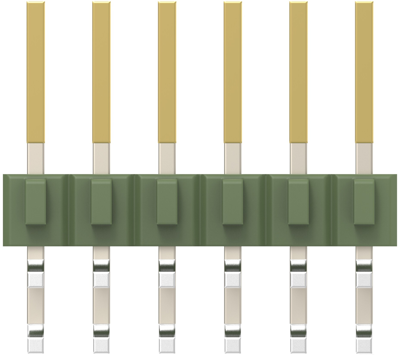

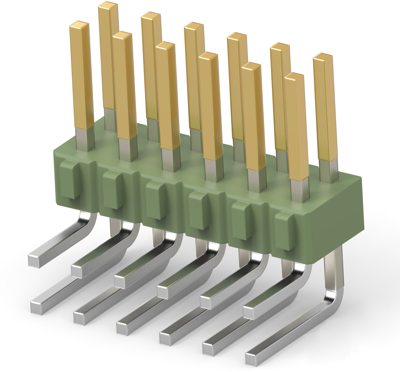

Pin header, 12 pole, pitch 2.54 mm, angled, green, 826634-6
Order No.: 59F565
MPN:
826634-6
Unit Price (€ / pc.)
1.5708 € *
Available in 5 Days: 3,566 pcs. - if ordered today
Total Price:
7.85 € *
Price list
Quantity
Price per unit*
5 pcs.
1.5708 €
10 pcs.
1.4518 €
25 pcs.
1.3566 €
50 pcs.
1.2257 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connector, 826634-6, AMP
PCB mount header, Right angle, Board-to-Board, 12 Positions, 2.54 mm centerline, Breakaway.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| contact surface | gold-plated | |
| Version | pin header | |
| Rated current | 5 A | |
| Orientation | angled | |
| Type of locking | Yes | |
| Number of rows | 2 | |
| Colour | green | |
| Pin number | 12 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
