826634-5 | AMP

Pin header, 10 pole, pitch 2.54 mm, angled, green, 826634-5

Order No.: 56F6241
EAN: 4099891000929
MPN:
826634-5
0-0826634-5
Series: AMPMODU

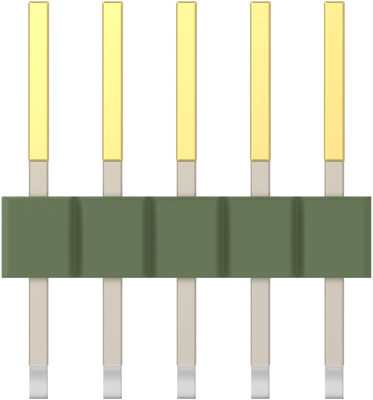

826634-5 AMP PCB Connection Systems Image 1

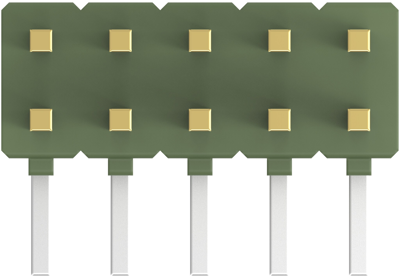

826634-5 AMP PCB Connection Systems Image 2

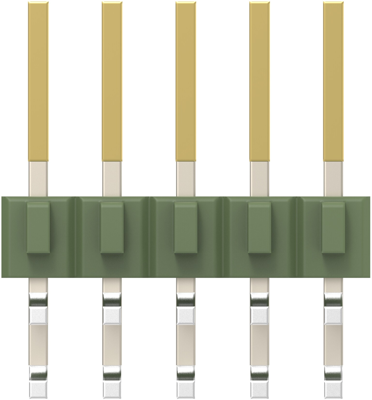

826634-5 AMP PCB Connection Systems Image 3

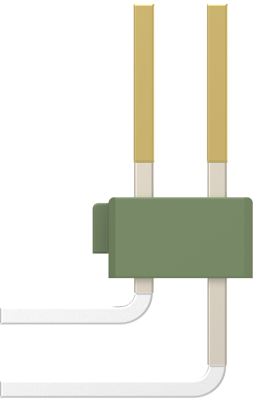

826634-5 AMP PCB Connection Systems Image 4

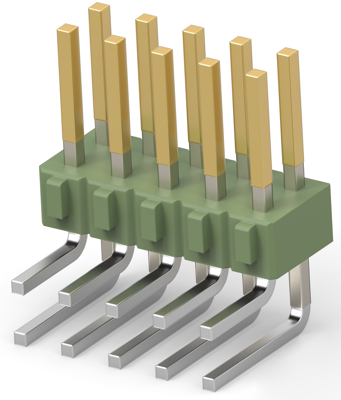

826634-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.1900 € *
Available: 92 pcs.
Available in 5 Days: 5,045 pcs. - if ordered today
Total Price:
5.95 € *
Price list
Quantity
Price per unit*
5 pcs.
1.1900 €
10 pcs.
1.1067 €
25 pcs.
1.0234 €
50 pcs.
0.9282 €
*incl. VAT plus shipping costs
Subject to prior sale

Dual-row pin headers, angled, type TE Connectivity/AMP Modu II.

With 2.54 mm grid; Housing: polyester, green, compliant with UL 94 V-0, self-extinguishing. The number of contacts can be reduced as required by breaking them off.

Gold-plated, pin length B 6.7 mm, type ..-0826.

Gold-plated pins in the contact area (0.8 µm gold over 1.3 µm Ni); Gold-plated zone (dimension F): 5.5 mm, tinned soldering area (2.5 µm tin over 1.3 µm Ni). Dimension C: 2.9 mm. Dimension D: 1.3 mm.

Type: 0-0826634-5, 2 x 5-pole

Technical specifications
Filter Property Value
Additional parts equipped
Version pin header
Pin number 10 pole
Grid 2.54 mm
contact surface gold-plated
Number of rows 2
Rated current 5 A
Colour green
Connection plating tin-plated
Breakable Yes
Contact type pin
Connection PCB connection
Type of locking Yes
Orientation angled
Logistics
Property Value
Customs tariff number 85366930
Country of origin TH
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
