826632-4 | AMP

Pin header, 8 pole, pitch 2.54 mm, straight, green, 826632-4

Order No.: 56F6229
EAN: 4099891000806
MPN:
826632-4
0-0826632-4
Series: AMPMODU

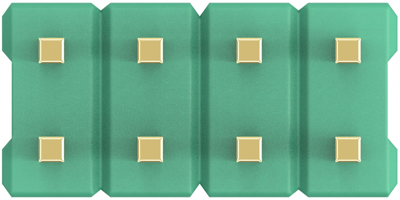

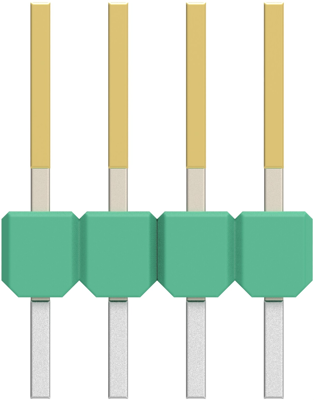

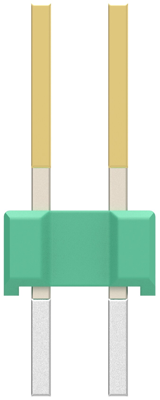

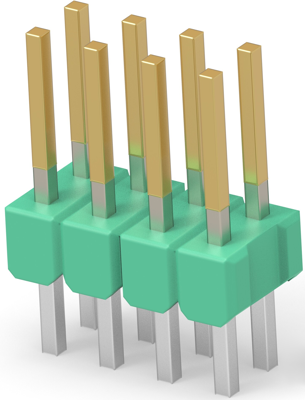

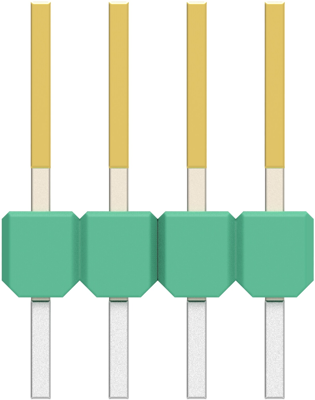

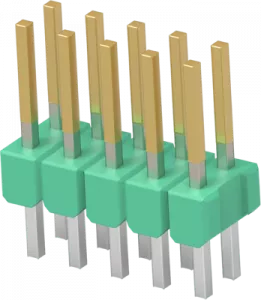

826632-4 AMP PCB Connection Systems Image 1
826632-4 AMP PCB Connection Systems Image 2
826632-4 AMP PCB Connection Systems Image 3
826632-4 AMP PCB Connection Systems Image 4
826632-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9520 € *
Available: 2,243 pcs.
Available in 5 Days: 6,240 pcs. - if ordered today
Total Price:
4.76 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9520 €
10 pcs.
0.8806 €
25 pcs.
0.8211 €
50 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale

Gold-plated, pin length B 6.7 mm, type ..-0826.

with 2.54 mm grid. Housing: polyester, green, compliant with UL 94 V-0, self-extinguishing. Contacts: tinned (2.5 µm tin over Ni) or gold-plated (0.8 µm Au over Ni). The number of contacts can be reduced as required by breaking them off.

Gold-plated pins in the contact area (0.8 µm gold over 1.3 µm Ni); Gold-plated zone (dimension F): 5.5 mm, tinned solder area (2.5 µm tin over 1.3 µm Ni). Dimension A: 12.4 mm. Dimension C: 2.9 mm.

Type: 0-0826632-4, 2 x 4-pole

Technical specifications
Filter Property Value
Grid 2.54 mm
Breakable Yes
Contact type pin
Connection plating tin-plated
contact surface gold-plated
Version pin header
Rated current 5 A
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 2
Colour green
Pin number 8 pole
Connection PCB connection
Logistics
Property Value
Country of origin SI
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
