826629-8 | AMP

Pin header, 8 pole, pitch 2.54 mm, straight, green, 826629-8

Order No.: 59F2134
EAN: 4099891005009
MPN:
826629-8
0-0826629-8
Series: AMPMODU

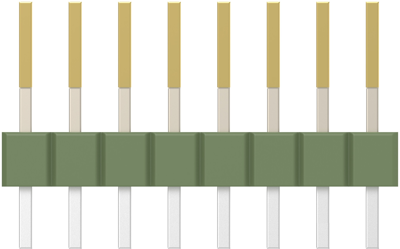

826629-8 AMP PCB Connection Systems Image 1

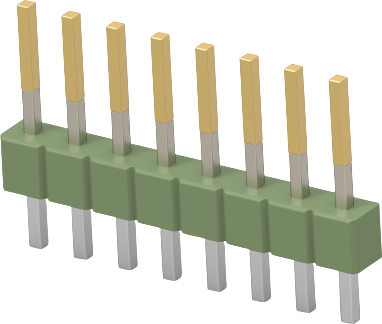

826629-8 AMP PCB Connection Systems Image 2

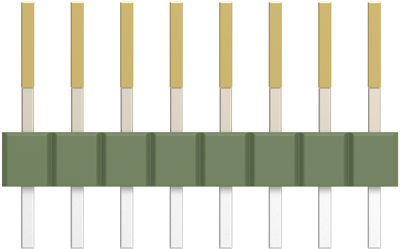

826629-8 AMP PCB Connection Systems Image 3

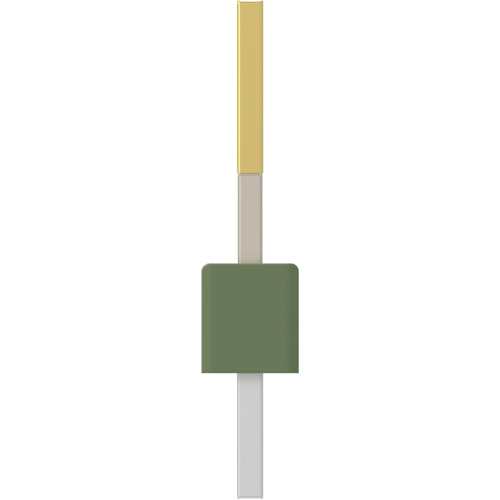

826629-8 AMP PCB Connection Systems Image 4
826629-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.5347 € *
Available: 631 pcs.
Available in 5 Days: 3,261 pcs. - if ordered today
Total Price:
2.53 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5347 €
10 pcs.
2.3562 €
25 pcs.
2.2015 €
50 pcs.
1.9992 €
*incl. VAT plus shipping costs
Subject to prior sale

Single-row pin headers for PCB mounting, type TE Connectivity/AMP Modu II ..-0826.

With 2.54 mm grid. For Modu IV socket headers without interlock. Insulated housing made of thermoplastic polyester, green, compliant with UL 94 V-0; Contact types: tin bronze contacts, 0.8 µ selective gold-plated on nickel primer (dimension F) and tinned soldering side or brass contacts with tinned contact and solder area. The number of contacts can be reduced as required by breaking them off.

Gold-plated, pin length B 6.7 mm, type ..-0826.

Straight pins, gold-plated in the contact area (0.8 µm Au over 1.3 µm Ni), tinned in the solder area (2.5 µm Sn over 1.3 µm Ni); Dimension A: 12.4 mm. Dimension C: 2.9 mm. Dimension F: 5.5 mm.

Type: 0-0826629-8, 8-pole

Technical specifications
Filter Property Value
Connection plating tin-plated
Breakable Yes
Grid 2.54 mm
Orientation straight
Connection PCB connection
Contact type pin
Rated current 5 A
Additional parts equipped
Version pin header
Pin number 8 pole
Type of locking Yes
contact surface gold-plated
Number of rows 1
Colour green
Logistics
Property Value
Country of origin PL
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
