826629-6 | AMP

Pin header, 6 pole, pitch 2.54 mm, straight, green, 826629-6

Order No.: 37P8194
EAN: 4099889971200
MPN:
826629-6
Series: AMPMODU

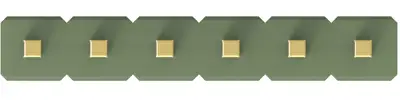

826629-6 AMP PCB Connection Systems Image 1

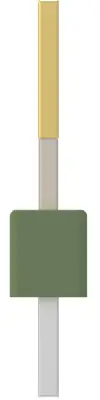

826629-6 AMP PCB Connection Systems Image 2

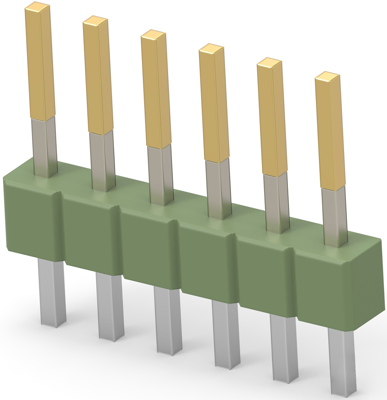

826629-6 AMP PCB Connection Systems Image 3

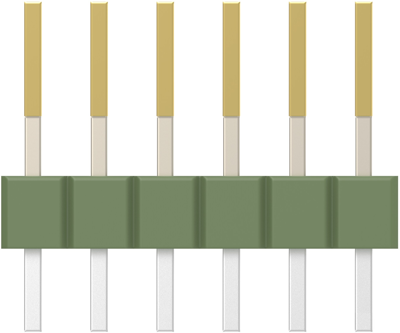

826629-6 AMP PCB Connection Systems Image 4

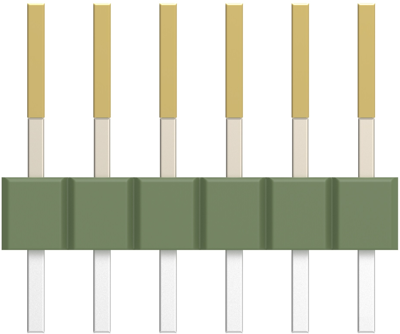

826629-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.8449 € *
Available: 225 pcs.
Available in 5 Days: 12,126 pcs. - if ordered today
Total Price:
0.84 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8449 €
10 pcs.
0.7735 €
50 pcs.
0.7140 €
100 pcs.
0.6426 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 826629-6, AMP

Board-to-Board, Printed Circuit Board, Breakaway, Vertical, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PBT GV
  • Housing Color: green
  • Orientation: straight
  • Number of positions: 6
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Filter Property Value
contact surface gold-plated
Version pin header
Grid 2.54 mm
Contact type pin
Connection PCB connection
Breakable Yes
Colour green
Connection plating tin-plated
Type of locking Yes
Additional parts equipped
Number of rows 1
Pin number 6 pole
Orientation straight
Rated current 5 A
Logistics
Property Value
Country of origin PL
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
