826629-2 | AMP

Pin header, 2 pole, pitch 2.54 mm, straight, green, 826629-2

Order No.: 59F2124
EAN: 4099891004965
MPN:
826629-2
0-0826629-2
Series: AMPMODU

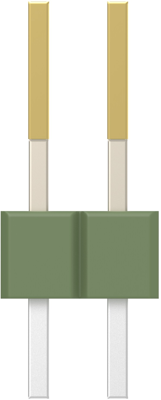

826629-2 AMP PCB Connection Systems Image 1

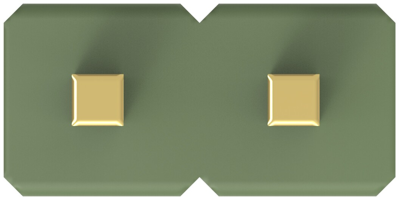

826629-2 AMP PCB Connection Systems Image 2

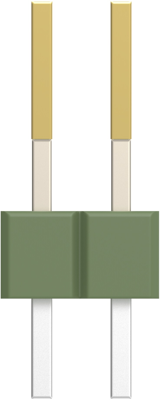

826629-2 AMP PCB Connection Systems Image 3

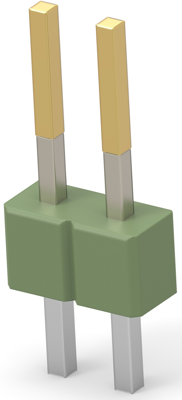

826629-2 AMP PCB Connection Systems Image 4

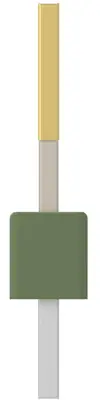

826629-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3689 € *
Next delivery: 650 pcs. on 2025-09-09
Total Price:
0.37 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3689 €
10 pcs.
0.3451 €
25 pcs.
0.3213 €
50 pcs.
0.2880 €
*incl. VAT plus shipping costs
Subject to prior sale

Single-row pin headers for PCB mounting, type TE Connectivity/AMP Modu II ..-0826.

With 2.54 mm grid. For Modu IV socket headers without interlock. Insulated housing made of thermoplastic polyester, green, compliant with UL 94 V-0; Contact types: tin bronze contacts, 0.8 µ selective gold-plated on nickel primer (dimension F) and tinned soldering side or brass contacts with tinned contact and solder area. The number of contacts can be reduced as required by breaking them off.

Gold-plated, pin length B 6.7 mm, type ..-0826.

Straight pins, gold-plated in the contact area (0.8 µm Au over 1.3 µm Ni), tinned in the solder area (2.5 µm Sn over 1.3 µm Ni); Dimension A: 12.4 mm. Dimension C: 2.9 mm. Dimension F: 5.5 mm.

Type: 0-0826629-2, 2-pole

Technical specifications
Filter Property Value
Connection plating tin-plated
Pin number 2 pole
Number of rows 1
Type of locking Yes
Colour green
Rated current 5 A
contact surface gold-plated
Connection PCB connection
Orientation straight
Additional parts equipped
Breakable Yes
Contact type pin
Grid 2.54 mm
Version pin header
Logistics
Property Value
Country of origin PL
Customs tariff number 85366930
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
