826469-8 | AMP
Pin header, 16 pole, pitch 2.54 mm, straight, black, 826469-8
Unit Price (€ / pc.)
8.0087 € *
Available: 25 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
8.01 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0087 €
10 pcs.
7.4375 €
25 pcs.
6.9377 €
50 pcs.
6.3070 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers with protective collar, type TE Connectivity/AMP Modu II.
With 2.54 mm grid, single-row or dual-row, shell segments with interlock feature; Housing: polycarbonate GV, black, compliant with UL 94 V-0. Contact material: brass. Contact finish: in the contact area 0.8 µ gold on 1.3 µ nickel primer, in the soldering area 2.5 µ tinned on 1.3 µ nickel primer.

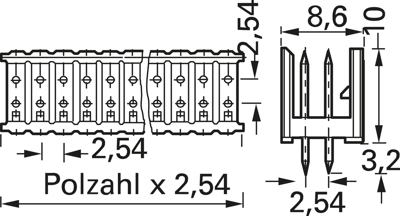

Dual-row, with straight solder pins, type ..-0826.
Type: 0-0826469-8, 2 x 8-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Pin number | 16 pole | |
| contact surface | gold-plated | |
| Contact type | pin | |
| Number of rows | 2 | |
| Breakable | No | |
| Connection | PCB connection | |
| Colour | black | |
| Grid | 2.54 mm | |
| Rated current | 5 A | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| Version | pin header | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
