826469-4 | AMP

Pin header, 8 pole, pitch 2.54 mm, straight, black, 826469-4

Order No.: 59F4043
EAN: 4099891005849
MPN:
826469-4
0-0826469-4
Series: AMPMODU

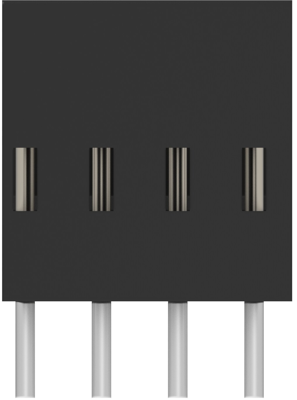

826469-4 AMP PCB Connection Systems Image 1

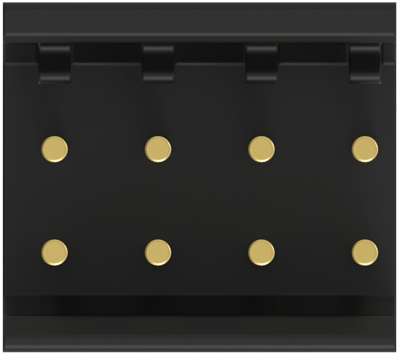

826469-4 AMP PCB Connection Systems Image 2

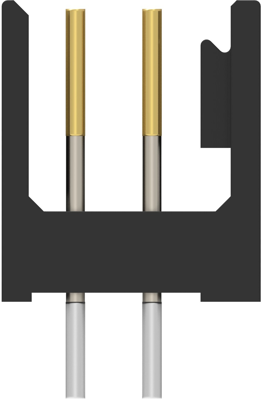

826469-4 AMP PCB Connection Systems Image 3

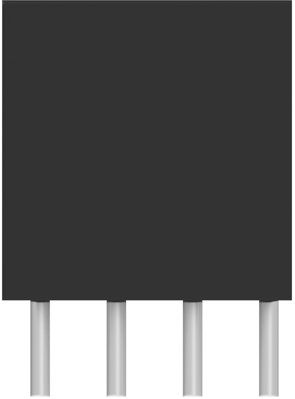

826469-4 AMP PCB Connection Systems Image 4

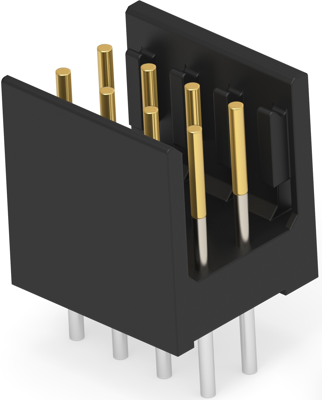

826469-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.4276 € *
Available in 5 Days: 6,941 pcs. - if ordered today
Total Price:
2.43 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4276 €
10 pcs.
2.2134 €
50 pcs.
1.9873 €
100 pcs.
1.7969 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin headers with protective collar, type TE Connectivity/AMP Modu II.

With 2.54 mm grid, single-row or dual-row, shell segments with interlock feature; Housing: polycarbonate GV, black, compliant with UL 94 V-0. Contact material: brass. Contact finish: in the contact area 0.8 µ gold on 1.3 µ nickel primer, in the soldering area 2.5 µ tinned on 1.3 µ nickel primer.

Dual-row, with straight solder pins, type ..-0826.

Type: 0-0826469-4, 2 x 4-pole

Technical specifications
Colour black
Breakable No
Type of locking Yes
contact surface gold-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 8 pole
Version pin header
Additional parts equipped
Orientation straight
Connection PCB connection
Contact type pin
Number of rows 2
Logistics
Country of origin TW
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
