826467-8 | AMP

Pin header, 8 pole, pitch 2.54 mm, straight, black, 826467-8

Order No.: 59F4007
EAN: 4099891005726
MPN:
826467-8
0-0826467-8
Series: AMPMODU
826467-8 AMP PCB Connection Systems Image 1

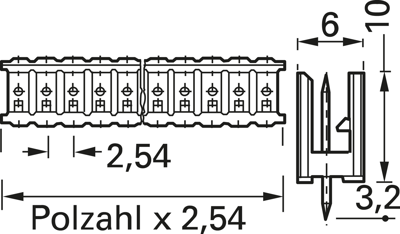

826467-8 AMP PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.2134 € *
Available in 5 Days: 7,422 pcs. - if ordered today
Total Price:
2.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.2134 €

Pin headers with protective collar, type TE Connectivity/AMP Modu II.

With 2.54 mm grid, single-row or dual-row, shell segments with interlock feature; Housing: polycarbonate GV, black, compliant with UL 94 V-0. Contact material: brass. Contact finish: in the contact area 0.8 µ gold on 1.3 µ nickel primer, in the soldering area 2.5 µ tinned on 1.3 µ nickel primer.

Single-row, with straight solder pins, type ..-0826.

Type: 0-0826467-8, 8-pole

Technical specifications
Colour black
Breakable No
Type of locking Yes
contact surface gold-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 8 pole
Version pin header
Additional parts equipped
Orientation straight
Connection PCB connection
Contact type pin
Number of rows 1
Logistics
Country of origin TW
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
