826467-6 | AMP
Pin header, 6 pole, pitch 2.54 mm, straight, black, 826467-6
Unit Price (€ / pc.)
2.2372 € *
Available: 2,149 pcs.
Available in 5 Days: 47,026 pcs. - if ordered today
Total Price:
11.19 € *
Price list
Quantity
Price per unit*
5 pcs.
2.2372 €
10 pcs.
2.0706 €
25 pcs.
1.9278 €
50 pcs.
1.7493 €
*incl. VAT plus shipping costs
Subject to prior sale

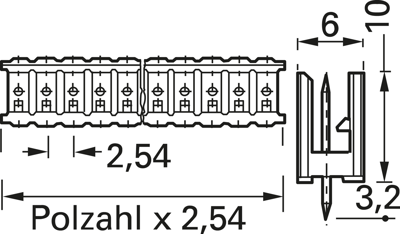

Pin headers with protective collar, type TE Connectivity/AMP Modu II.
With 2.54 mm grid, single-row or dual-row, shell segments with interlock feature; Housing: polycarbonate GV, black, compliant with UL 94 V-0. Contact material: brass. Contact finish: in the contact area 0.8 µ gold on 1.3 µ nickel primer, in the soldering area 2.5 µ tinned on 1.3 µ nickel primer.
Single-row, with straight solder pins, type ..-0826.
Type: 0-0826467-6, 6-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Breakable | No | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| contact surface | gold-plated | |
| Version | pin header | |
| Rated current | 5 A | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black | |
| Pin number | 6 pole | |
| Connection | PCB connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
