826467-3 | AMP

Pin header, 3 pole, pitch 2.54 mm, straight, black, 826467-3

Order No.: 59F4001
EAN: 4099891005696
MPN:
826467-3
0-0826467-3
Series: AMPMODU

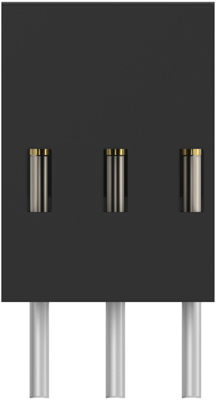

826467-3 AMP PCB Connection Systems Image 1

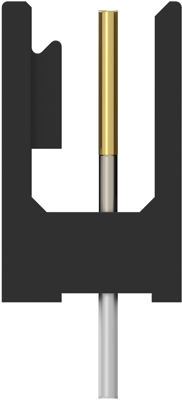

826467-3 AMP PCB Connection Systems Image 2

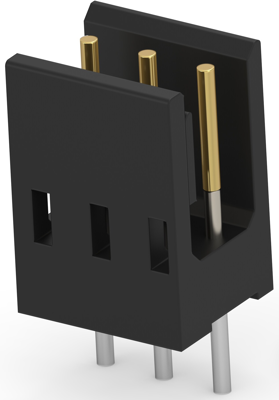

826467-3 AMP PCB Connection Systems Image 3

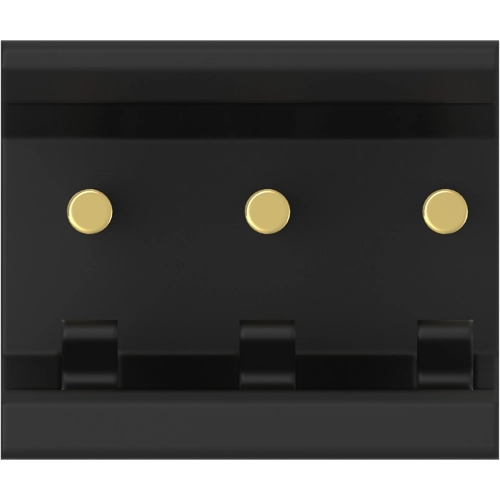

826467-3 AMP PCB Connection Systems Image 4

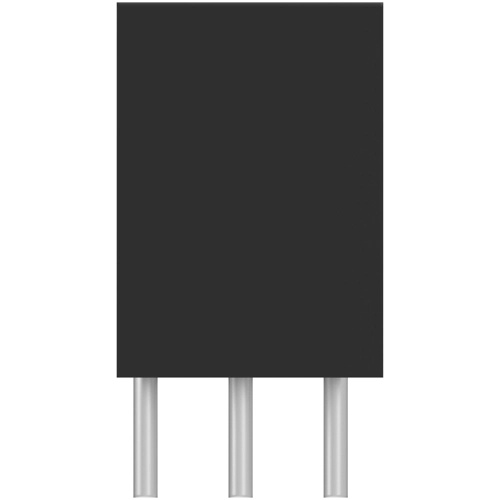

826467-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.2376 € *
Available: 415 pcs.
Available in 5 Days: 142,868 pcs. - if ordered today
Total Price:
6.19 € *
Price list
Quantity
Price per unit*
5 pcs.
1.2376 €
10 pcs.
1.1424 €
25 pcs.
1.0710 €
50 pcs.
0.9639 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin headers with protective collar, type TE Connectivity/AMP Modu II.

With 2.54 mm grid, single-row or dual-row, shell segments with interlock feature; Housing: polycarbonate GV, black, compliant with UL 94 V-0. Contact material: brass. Contact finish: in the contact area 0.8 µ gold on 1.3 µ nickel primer, in the soldering area 2.5 µ tinned on 1.3 µ nickel primer.

Single-row, with straight solder pins, type ..-0826.

Type: 0-0826467-3, 3-pole

Technical specifications
Filter Property Value
Grid 2.54 mm
Breakable No
Contact type pin
Connection plating tin-plated
contact surface gold-plated
Version pin header
Rated current 5 A
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour black
Pin number 3 pole
Connection PCB connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
