825433-3 | AMP

Pin header, 3 pole, pitch 2.54 mm, straight, green, 825433-3

Order No.: 37P8268
EAN: 4099889971590
MPN:
825433-3
Series: AMPMODU

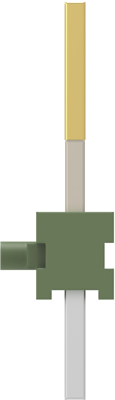

825433-3 AMP PCB Connection Systems Image 1

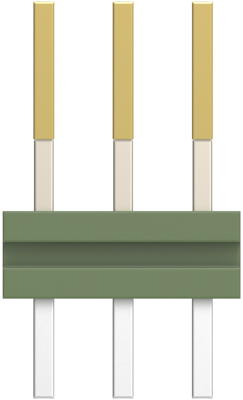

825433-3 AMP PCB Connection Systems Image 2

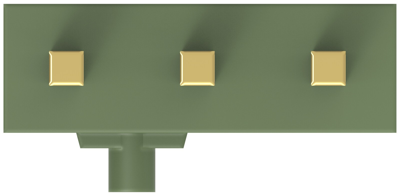

825433-3 AMP PCB Connection Systems Image 3

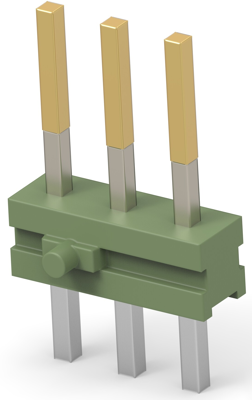

825433-3 AMP PCB Connection Systems Image 4

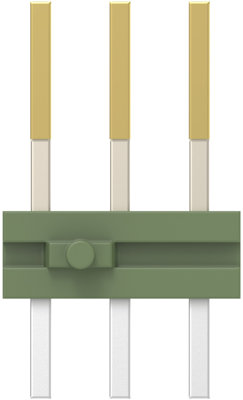

825433-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4284 € *
Available: 342 pcs.
Available in 5 Days: 76,546 pcs. - if ordered today
Total Price:
2.14 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4284 €
10 pcs.
0.3927 €
25 pcs.
0.3689 €
50 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 825433-3, AMP

Board-to-Board, Printed Circuit Board, Breakaway, Vertical, 3 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass, CuZn
  • Housing Material: PBT GF, PBT GV
  • Housing Color: green
  • Orientation: straight
  • Number of positions: 3
  • Operating Temperature Range: -65 – 105 °C
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Filter Property Value
Grid 2.54 mm
Breakable Yes
Contact type pin
Connection plating tin-plated
contact surface gold-plated
Version pin header
Rated current 5 A
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour green
Pin number 3 pole
Connection PCB connection
Logistics
Property Value
Country of origin GB
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
