825433-2 | AMP

Pin header, 2 pole, pitch 2.54 mm, straight, green, 825433-2

Order No.: 59F236
EAN: 4099891005412
MPN:
825433-2
0-0825433-2
Series: AMPMODU

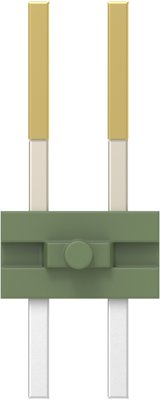

825433-2 AMP PCB Connection Systems Image 1

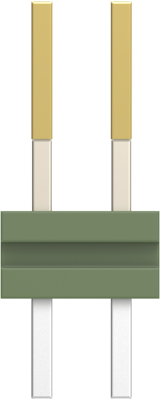

825433-2 AMP PCB Connection Systems Image 2

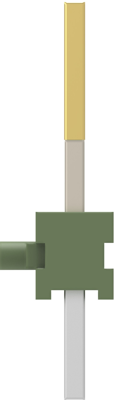

825433-2 AMP PCB Connection Systems Image 3

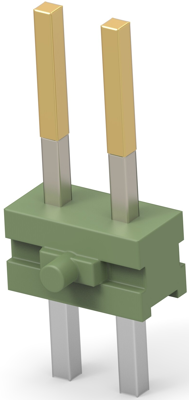

825433-2 AMP PCB Connection Systems Image 4
825433-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4403 € *
Available: 433 pcs.
Available in 5 Days: 17,243 pcs. - if ordered today
Total Price:
2.20 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4403 €
10 pcs.
0.4046 €
25 pcs.
0.3808 €
50 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin headers for PCB mounting, single-row, TE Connectivity AMP Modu II, type ..-0825../..-0828.

With 2.54 mm grid. Suitable for parallel stacking. With 0.63 x 0.63 mm solder pins and latching notches. Match Modu IV socket headers with interlock; Insulating body: polyester GV, green, inflammability to UL 94 V-0. Insertion zone 0.8 µm gold-plated or 2.5 µm tinned on nickel primer. Tinned solder pins. Dimensions: A 12.4 mm, B 6.7 mm, C 2.9 mm.

Straight single-row, type ..-0825../..-0828.

Technical attributes (type, number of poles, contact finish): 0-0825433-2, 2-pole, gold-plated

Technical specifications
Filter Property Value
Grid 2.54 mm
Breakable Yes
Contact type pin
Connection plating tin-plated
contact surface gold-plated
Version pin header
Rated current 5 A
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour green
Pin number 2 pole
Connection PCB connection
Logistics
Property Value
Country of origin IN
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
