8-794535-1 | AMP

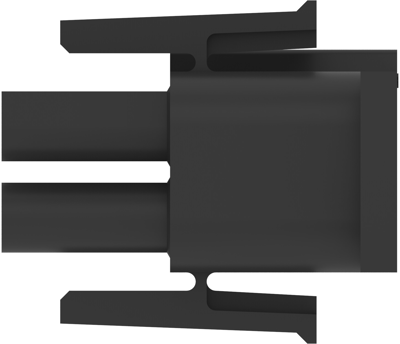

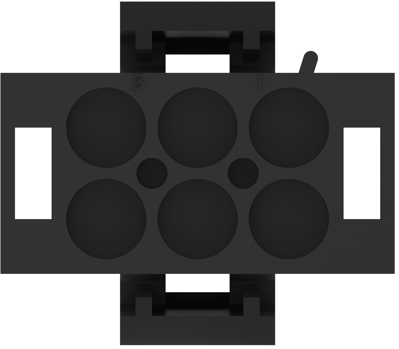

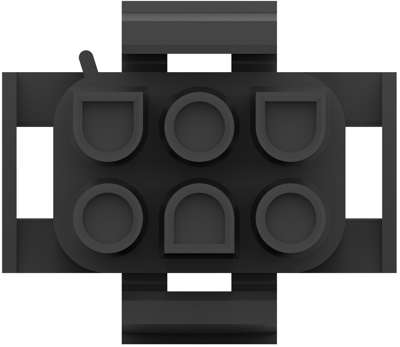

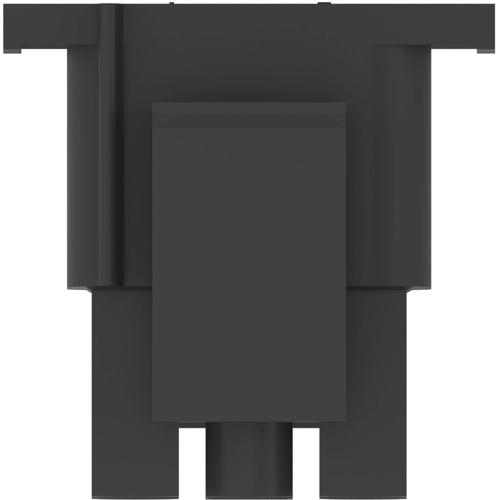

Plug housing, 6 pole, pitch 6.35 mm, straight, black, 8-794535-1
Unit Price (€ / pc.)
0.7140 € *
Available in 5 Days: 12,591 pcs. - if ordered today
Total Price:
3.57 € *
Price list
Quantity
Price per unit*
5 pcs.
0.7140 €
10 pcs.
0.6545 €
25 pcs.
0.6188 €
50 pcs.
0.5593 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug housing , 8-794535-1, AMP
Rectangular power connector, Housing, Plug, Wire-to-Wire / Wire-to-Board, 6 Position, 6.35 mm centerline, Wire and Cable.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 6.35 mm | |
| Contact type | socket | |
| Version | plug housing | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Number of rows | 2 | |
| Colour | black | |
| Pin number | 6 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
