8-338069-0 | AMP

Socket housing, 10 pole, pitch 1.27 mm, straight, red, 8-338069-0

Order No.: 39P1981
EAN: 4099889978209
MPN:
8-338069-0
Series: Micro-MaTch

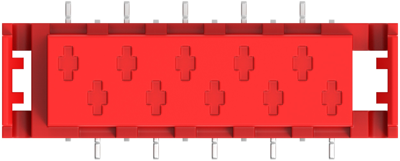

8-338069-0 AMP PCB Connection Systems Image 1

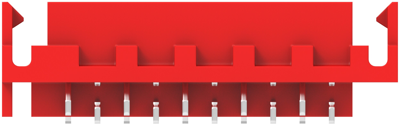

8-338069-0 AMP PCB Connection Systems Image 2

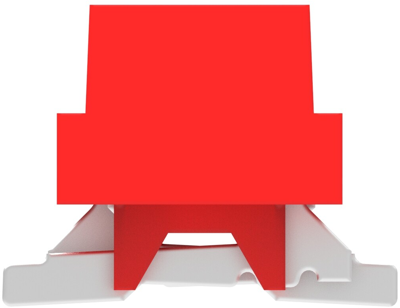

8-338069-0 AMP PCB Connection Systems Image 3

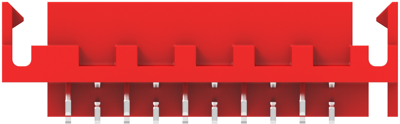

8-338069-0 AMP PCB Connection Systems Image 4

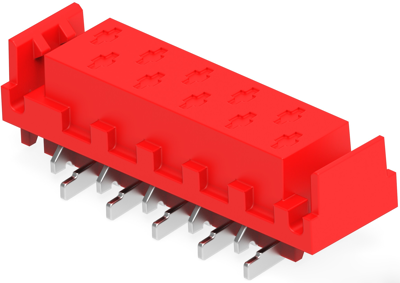

8-338069-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.7255 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
1,552.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
900 pcs.
1.7255 €

PCB Connection System, 8-338069-0, AMP

Board-to-Board, Printed Circuit Board, Vertical, 10 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PA 4.6
  • Housing Color: red
  • Orientation: straight
  • Number of positions: 10
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 1.27 mm
  • Row-to-Row Spacing: 2 mm [0.059 in]
  • PCB Mount Retention: Without
Technical specifications
Filter Property Value
Rated current 1.5 A
Rated voltage 100 V
Version socket housing
Number of rows 2
Orientation straight
Additional parts equipped
contact surface tin-plated
Pin number 10 pole
Grid 1.27 mm
Type of locking Yes
Contact type socket
Colour red
Connection plating tin-plated
Connection PCB connection
Logistics
Property Value
Country of origin SG
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
