8-215570-8 | AMP

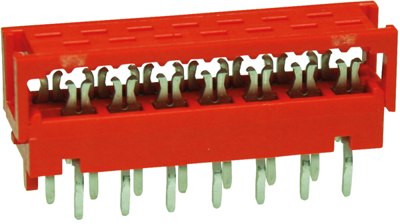

Pin header, 18 pole, pitch 1.27 mm, straight, red, 8-215570-8
Unit Price (€ / pc.)
2.6180 € *
Available in 5 Days: 4,250 pcs. - if ordered today
Total Price:
654.50 € *
Price list
Quantity
Price per unit*
250 pcs.
2.6180 €
500 pcs.
2.4990 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connectors, type TE Connectivity/AMP Micro-Match.
With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.
PCB connectors with cage clamp terminals
For PCB mounting.

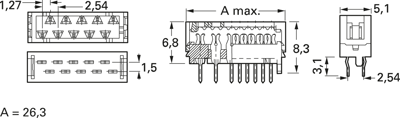

Technical attributes (type, number of poles, dimension A): 8-0215570-8, 18-pole, 26.3 mm
Technical specifications
| Colour | red | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Rated current | 1.5 A | |
| Grid | 1.27 mm | |
| Connection plating | tin-plated | |
| Pin number | 18 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | IDC connection | |
| Contact type | pin | |
| Rated voltage | 100 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
