8-215570-4 | AMP

Pin header, 14 pole, pitch 1.27 mm, straight, red, 8-215570-4

Order No.: 58F490
EAN: 4099891003159
MPN:
8-215570-4
8-0215570-4
Series: Micro-MaTch

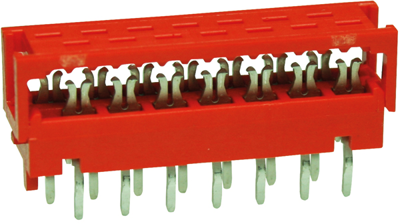

8-215570-4 AMP PCB Connection Systems Image 1
8-215570-4 AMP PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.7255 € *
Next delivery: 750 pcs. on 2025-08-28
Total Price:
2,156.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
1250 pcs.
1.7255 €

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

PCB connectors with cage clamp terminals

For PCB mounting.

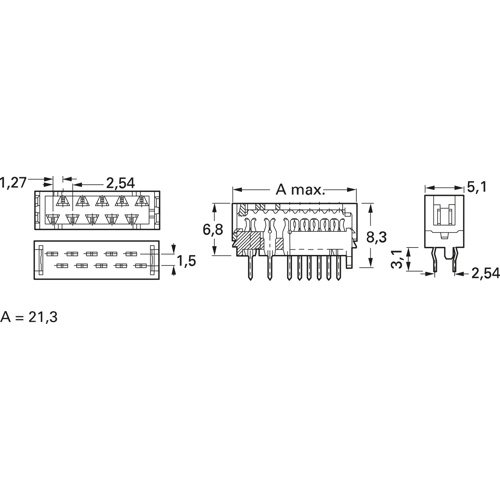

Technical attributes (type, number of poles, dimension A): 8-0215570-4, 14-pole, 21.3 mm

Technical specifications
Filter Property Value
Rated current 1.5 A
Additional parts equipped
contact surface tin-plated
Version pin header
Orientation straight
Connection plating tin-plated
Grid 1.27 mm
Type of locking Yes
Number of rows 2
Contact type pin
Colour red
Pin number 14 pole
Connection IDC connection
Rated voltage 100 V
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
