8-215460-4 | AMP

Socket header, 14 pole, pitch 1.27 mm, angled, red, 8-215460-4

Order No.: 58F430
EAN: 4099891002886
MPN:
8-215460-4
8-0215460-4
Series: Micro-MaTch

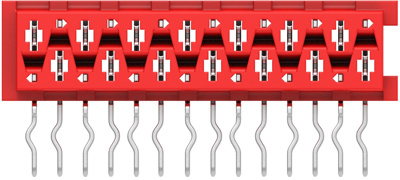

8-215460-4 AMP PCB Connection Systems Image 1

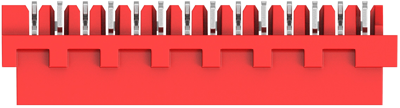

8-215460-4 AMP PCB Connection Systems Image 2

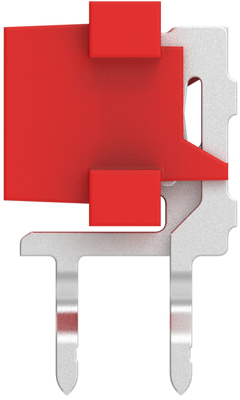

8-215460-4 AMP PCB Connection Systems Image 3

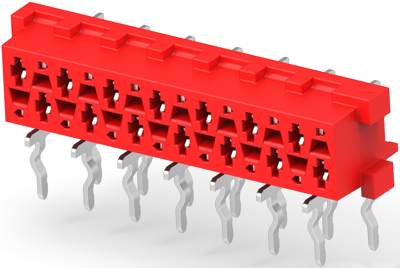

8-215460-4 AMP PCB Connection Systems Image 4

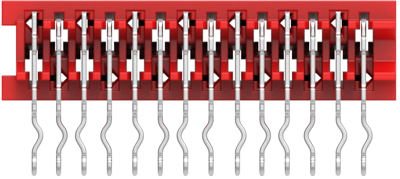

8-215460-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9163 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
1,145.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
1250 pcs.
0.9163 €

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact; Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

Sub-D PCB female connectors, angled, type ..-0215460.

For PCB mounting.

Technical attributes (type, number of poles, dimension B): 8-0215460-4, 14-pole, B 19.8 mm

Technical specifications
Colour red
Type of locking Yes
contact surface tin-plated
Rated current 1.5 A
Grid 1.27 mm
Connection plating tin-plated
Pin number 14 pole
Version socket header
Additional parts equipped
Orientation angled
Connection PCB connection
Contact type socket
Rated voltage 100 V
Number of rows 2
Logistics
Country of origin IN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
