8-215460-2 | AMP

Socket header, 12 pole, pitch 1.27 mm, angled, red, 8-215460-2

Order No.: 58F428
EAN: 4099891002879
MPN:
8-215460-2
8-0215460-2
Series: Micro-MaTch

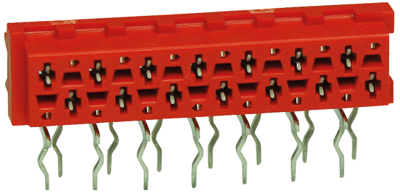

8-215460-2 AMP PCB Connection Systems Image 1
8-215460-2 AMP PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.2967 € *
Available in 5 Days: 2,088 pcs. - if ordered today
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
10 pcs.
2.0944 €
50 pcs.
1.8802 €
100 pcs.
1.7017 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact; Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

Sub-D PCB female connectors, angled, type ..-0215460.

For PCB mounting.

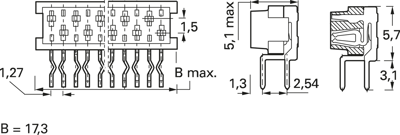

Technical attributes (type, number of poles, dimension B): 8-0215460-2, 12-pole, B 17.3 mm

Technical specifications
Colour red
Type of locking Yes
contact surface tin-plated
Rated current 1.5 A
Grid 1.27 mm
Connection plating tin-plated
Pin number 12 pole
Version socket header
Additional parts equipped
Orientation angled
Connection PCB connection
Contact type socket
Rated voltage 100 V
Number of rows 2
Logistics
Country of origin IN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
