8-215083-0 | AMP

Pin header, 10 pole, pitch 1.27 mm, straight, red, 8-215083-0

Order No.: 58F466
EAN: 4099891003043
MPN:
8-215083-0
8-0215083-0
Series: Micro-MaTch

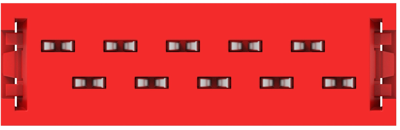

8-215083-0 AMP PCB Connection Systems Image 1

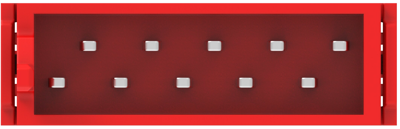

8-215083-0 AMP PCB Connection Systems Image 2

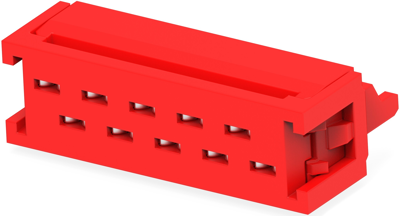

8-215083-0 AMP PCB Connection Systems Image 3

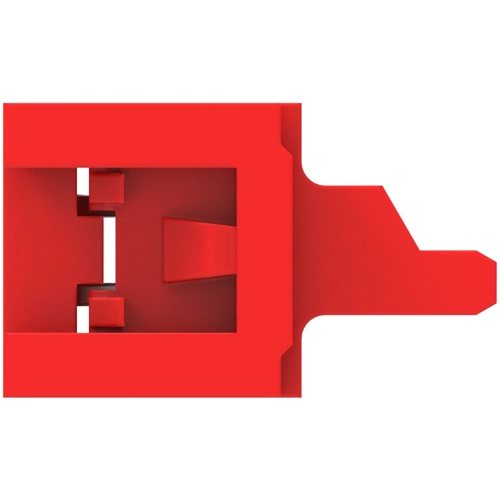

8-215083-0 AMP PCB Connection Systems Image 4

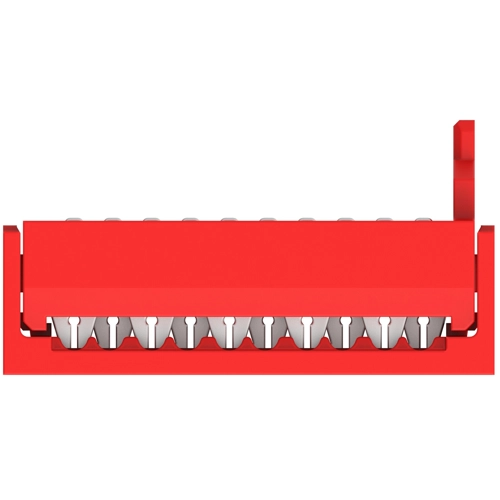

8-215083-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.4994 € *
Available: 858 pcs.
Available in 5 Days: 10,500 pcs. - if ordered today
Total Price:
7.50 € *
Price list
Quantity
Price per unit*
5 pcs.
1.4994 €
10 pcs.
1.3923 €
25 pcs.
1.2971 €
50 pcs.
1.1662 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

Male-on-wire connectors.

Technical attributes (type, number of poles, dimension A): 8-0215083-0, 10-pole, A 16.2 mm

Technical specifications
Filter Property Value
Grid 1.27 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 1.5 A
Rated voltage 100 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 2
Colour red
Pin number 10 pole
Connection IDC connection
Logistics
Property Value
Country of origin IN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
