8-215079-2 | AMP

Socket header, 12 pole, pitch 1.27 mm, straight, red, 8-215079-2

Order No.: 58F408
EAN: 4099891002442
MPN:
8-215079-2
8-0215079-2
Series: Micro-MaTch

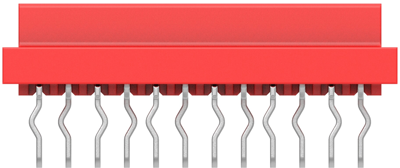

8-215079-2 AMP PCB Connection Systems Image 1

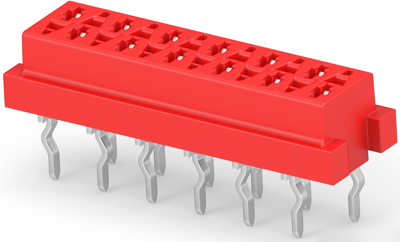

8-215079-2 AMP PCB Connection Systems Image 2

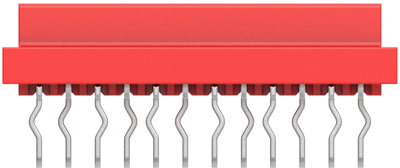

8-215079-2 AMP PCB Connection Systems Image 3

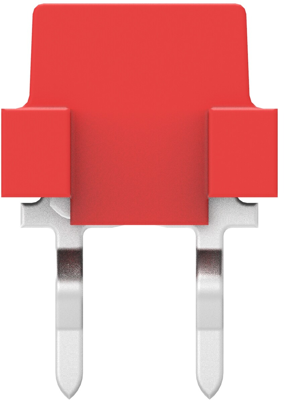

8-215079-2 AMP PCB Connection Systems Image 4

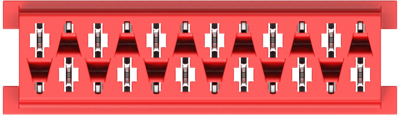

8-215079-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.6660 € *
Available: 220 pcs.
Available in 5 Days: 99,225 pcs. - if ordered today
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6660 €
10 pcs.
1.5232 €
50 pcs.
1.3923 €
100 pcs.
1.2495 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact; Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

Female connectors, straight, type ..-0215079.

For PCB mounting.

Technical attributes (type, number of poles, dimension B): 8-0215079-2, 12-pole, B 17.3 mm

Technical specifications
Filter Property Value
Contact type socket
Pin number 12 pole
Grid 1.27 mm
Colour red
Version socket header
Connection PCB connection
Connection plating tin-plated
Rated voltage 100 V
Rated current 1 A
Orientation straight
Number of rows 2
contact surface tin-plated
Additional parts equipped
Type of locking Yes
Logistics
Property Value
Customs tariff number 85366930
Country of origin IN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
