8-188275-2 | AMP

Socket header, 12 pole, pitch 1.27 mm, straight, red, 8-188275-2

Order No.: 58F708
EAN: 4099891004316
MPN:
8-188275-2
8-0188275-2
Series: Micro-MaTch

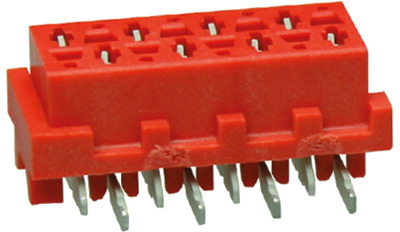

8-188275-2 AMP PCB Connection Systems Image 1
8-188275-2 AMP PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.2495 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1,124.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
900 pcs.
1.2495 €

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact; Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

Federleisten gerade für SMD-Montage.

Verpackung mit Ansaughaube für pick and place, Reflowlöten geeigent; Tabellenangaben: Typ, Polzahl, Maß B.

Type: 8-0188275-2, 12-polig, B 17,3 mm

Technical specifications
Filter Property Value
Rated current 1.5 A
contact surface tin-plated
Colour red
Additional parts equipped
Contact type socket
Connection plating tin-plated
Grid 1.27 mm
Orientation straight
Rated voltage 100 V
Connection SMD
Pin number 12 pole
Version socket header
Type of locking Yes
Number of rows 2
Logistics
Property Value
Customs tariff number 85366990
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
