794954-8 | AMP

Socket housing, 8 pole, pitch 4.2 mm, straight, natural, 794954-8

Order No.: 71F5836
EAN: 4099891010782
MPN:
794954-8
0-0794954-8
Series: VAL-U-LOK

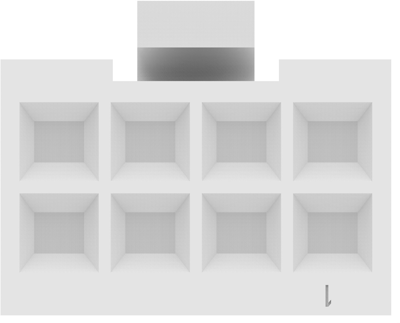

794954-8 AMP PCB Connection Systems Image 1

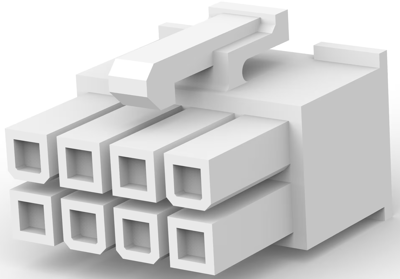

794954-8 AMP PCB Connection Systems Image 2

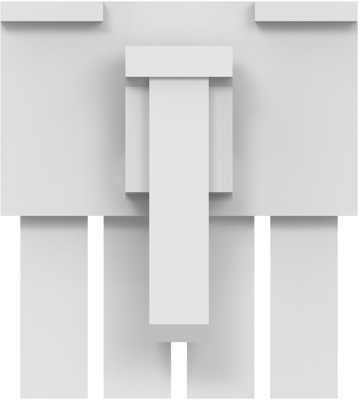

794954-8 AMP PCB Connection Systems Image 3

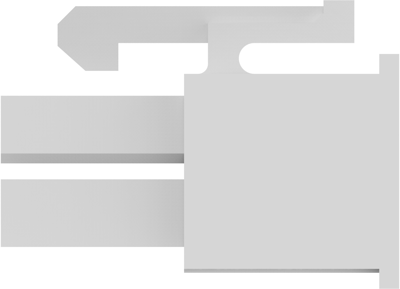

794954-8 AMP PCB Connection Systems Image 4

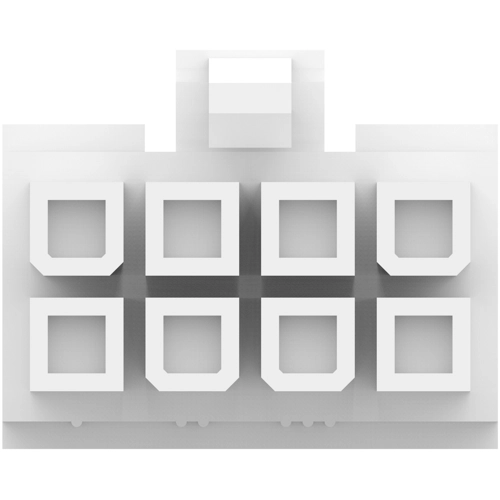

794954-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2380 € *
Available: 930 pcs.
Total Price:
23.80 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2380 €
250 pcs.
0.2202 €
500 pcs.
0.2035 €
1000 pcs.
0.1845 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connectors, 2- to 24-pole, 4.2 mm grid, type TE Connectivity/AMP VAL-U-LOK.

4.2 mm grid, single- and dual-row; Housing: Nylon, flame retardant to UL 94 V-2. Contacts: tinned brass. Rated voltage: 600 VAC. Rated current: max. 9.0 A per cable. Insulation resistance: min. 1000 Mohm. Insertion force (per contact): 6.9 N. Certifications: UL, CSA.

Female connector housings, dual-row, bare, type ..-0794954.

Technical attributes (type, number of poles, dimension A): 0-0794954-8, 8-pole, A 18.4 mm

Technical specifications
Filter Property Value
Grid 4.2 mm
Contact type socket
Version socket housing
Rated current 9 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 2
Colour natural
Pin number 8 pole
Connection crimp connection
Logistics
Property Value
Country of origin US
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
