794953-6 | AMP

Plug housing, 6 pole, pitch 4.2 mm, straight, natural, 794953-6

Order No.: 71F5874
EAN: 4099891010959
MPN:
794953-6
0-0794953-6
Series: VAL-U-LOK

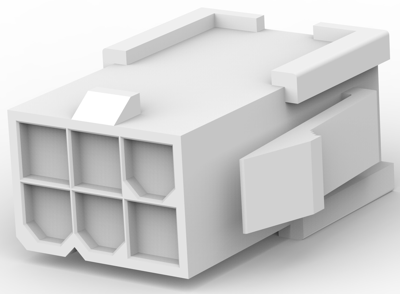

794953-6 AMP PCB Connection Systems Image 1

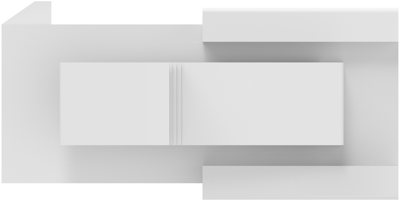

794953-6 AMP PCB Connection Systems Image 2

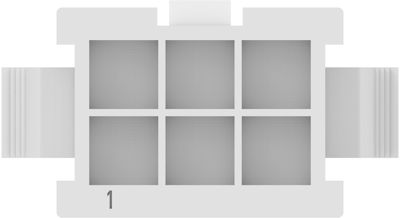

794953-6 AMP PCB Connection Systems Image 3

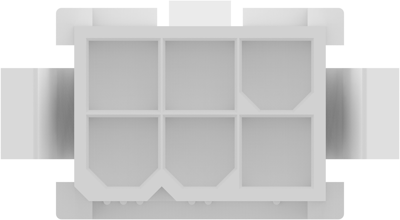

794953-6 AMP PCB Connection Systems Image 4
794953-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2666 € *
Available: 435 pcs.
Available in 5 Days: 6,939 pcs. - if ordered today
Total Price:
0.53 € *
Price list
Quantity
Price per unit*
2 pcs.
0.2666 €
10 pcs.
0.2368 €
50 pcs.
0.2083 €
100 pcs.
0.1845 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connectors, 2- to 24-pole, 4.2 mm grid, type TE Connectivity/AMP VAL-U-LOK.

4.2 mm grid, single- and dual-row; Housing: Nylon, flame retardant to UL 94 V-2. Contacts: tinned brass. Rated voltage: 600 VAC. Rated current: max. 9.0 A per cable. Insulation resistance: min. 1000 Mohm. Insertion force (per contact): 6.9 N. Certifications: UL, CSA.

Male connector housings, dual-row, bare, front panel mount, type ..-0794953.

Technical attributes (type, number of poles, dimension A): 0-0794953-6, 6-pole, A 13.8 mm

Technical specifications
Filter Property Value
Rated voltage 600 V
Type of locking Yes
Connection crimp connection
Pin number 6 pole
Number of rows 2
Additional parts unequipped
Version plug housing
Orientation straight
Grid 4.2 mm
Rated current 9 A
Contact type pin
Colour natural
Logistics
Property Value
Country of origin US
Customs tariff number 85472000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
