794941-1 | AMP

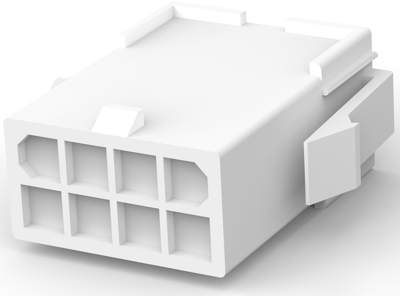

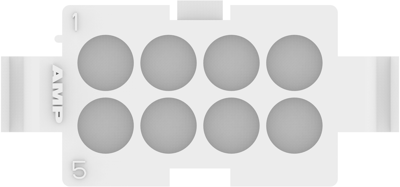

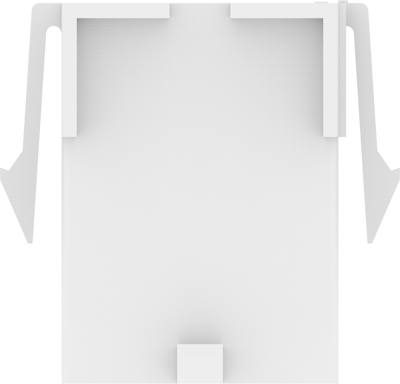

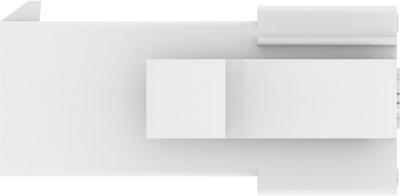

Socket housing, 8 pole, pitch 4.14 mm, straight, natural, 794941-1

Order No.: 71F7306
EAN: 4099891011826
MPN:
794941-1
0-0794941-1
794941-1 AMP PCB Connection Systems Image 1
794941-1 AMP PCB Connection Systems Image 2
794941-1 AMP PCB Connection Systems Image 3
794941-1 AMP PCB Connection Systems Image 4
794941-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.2852 € *
Available: 104 pcs.
Available in 5 Days: 1,458 pcs. - if ordered today
Total Price:
6.43 € *
Price list
Quantity
Price per unit*
5 pcs.
1.2852 €
10 pcs.
1.1900 €
25 pcs.
1.1067 €
50 pcs.
0.9996 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connectors, bare, 2 to 10 poles, series Mini-Universal-Mate-N-Lok, splashproof, type TE Connectivity/AMP.

Made of nylon, compliant with UL 94 V-0; Housing: polarized. Suitable for use as mixed plug and receptacle housing. Current rating: max. 9.5 A. Operating voltage: 600 VAC.

Receptacle housing, interlocking with connector housing, type 0-0794.

Technical attributes (type, number of poles): 0-0794941-1, 8-pole

Technical specifications
Filter Property Value
Grid 4.14 mm
Contact type socket/pin
Version socket housing
Rated current 9.5 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 2
Colour natural
Pin number 8 pole
Connection crimp connection
Logistics
Property Value
Country of origin US
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
