794939-1 | AMP

Socket housing, 4 pole, pitch 4.14 mm, straight, natural, 794939-1

Order No.: 71F7302
EAN: 4099891011802
MPN:
794939-1
0-0794939-1

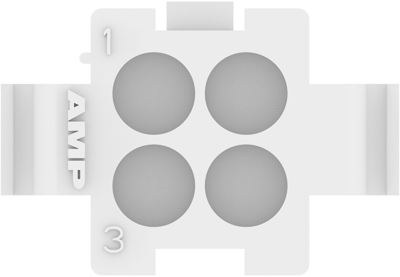

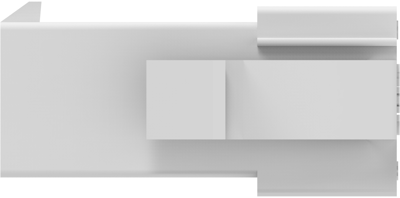

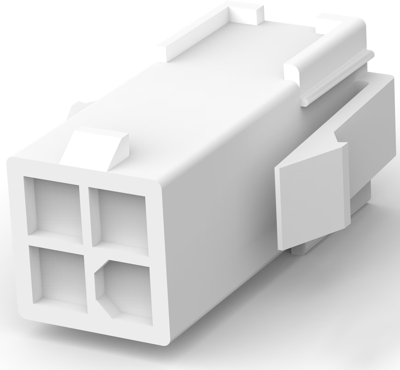

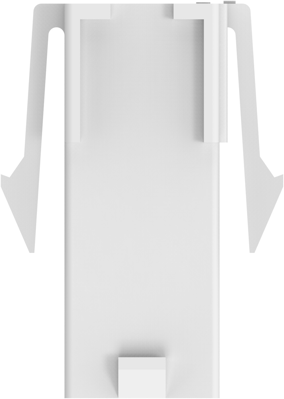

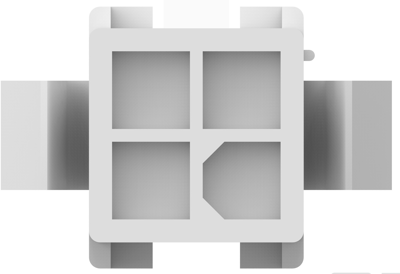

794939-1 AMP PCB Connection Systems Image 1
794939-1 AMP PCB Connection Systems Image 2
794939-1 AMP PCB Connection Systems Image 3
794939-1 AMP PCB Connection Systems Image 4
794939-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.7017 € *
Available in 5 Days: 6,288 pcs. - if ordered today
Total Price:
1.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.7017 €

Cable connectors, bare, 2 to 10 poles, series Mini-Universal-Mate-N-Lok, splashproof, type TE Connectivity/AMP.

Made of nylon, compliant with UL 94 V-0; Housing: polarized. Suitable for use as mixed plug and receptacle housing. Current rating: max. 9.5 A. Operating voltage: 600 VAC.

Receptacle housing, interlocking with connector housing, type 0-0794.

Technical attributes (type, number of poles): 0-0794939-1, 4-pole

Technical specifications
Filter Property Value
Contact type socket/pin
Orientation straight
Rated voltage 600 V
Additional parts unequipped
Version socket housing
Rated current 9.5 A
Grid 4.14 mm
Type of locking Yes
Colour natural
Connection crimp connection
Number of rows 2
Pin number 4 pole
Logistics
Property Value
Country of origin US
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
