794617-4 | AMP

Socket housing, 4 pole, pitch 3 mm, straight, black, 794617-4

Order No.: 71F5632
EAN: 4099891009939
MPN:
794617-4
0-0794617-4

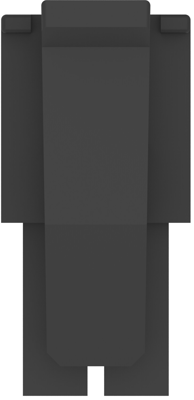

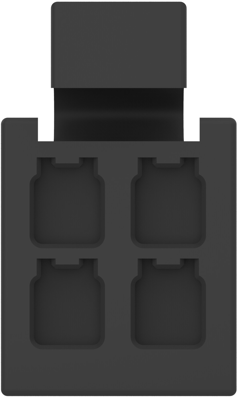

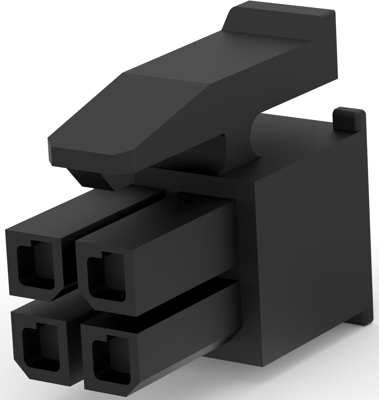

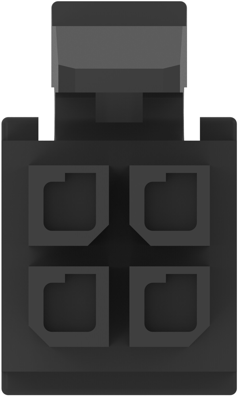

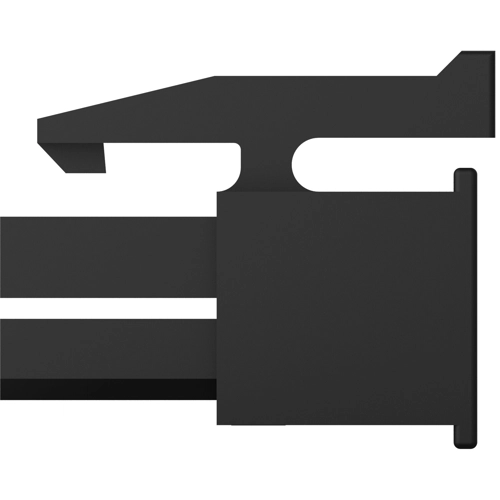

794617-4 AMP PCB Connection Systems Image 1
794617-4 AMP PCB Connection Systems Image 2
794617-4 AMP PCB Connection Systems Image 3
794617-4 AMP PCB Connection Systems Image 4
794617-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5117 € *
Available: 229 pcs.
Available in 5 Days: 4,053 pcs. - if ordered today
Total Price:
2.56 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5117 €
10 pcs.
0.4641 €
25 pcs.
0.4403 €
50 pcs.
0.3927 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connectors, 2- to 24-pole, 3.0 mm grid, type TE Connectivity/AMP Micro Mate-N-Lok.

3.0 mm grid, single- and dual-row; Rated voltage: 250 V. Rated current: max. 5.0 A. Insulation resistance: min. 1000 Mohm. Contact resistance: max. 20 mohm. Insertion force (pro contact): 6.67 N. Operating temperatures: –40 to +105 °C. Certifications: UL, CSA.

Female connector housings, dual-row, bare, type ..-794.

Made of Nylon, flame retardant to UL 94 V-0.

Technical attributes (type, number of poles, length): 0-0794617-4, 4-pole, L 7.0 mm

Technical specifications
Filter Property Value
Version socket housing
Orientation straight
Pin number 4 pole
Number of rows 2
Additional parts unequipped
Grid 3 mm
Colour black
Contact type socket
Rated voltage 250 V
Type of locking Yes
Connection crimp connection
Rated current 5 A
Logistics
Property Value
Customs tariff number 85472000
Country of origin US
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
