794616-8 | AMP

Plug housing, 8 pole, pitch 3 mm, straight, black, 794616-8

Order No.: 71F5666
EAN: 4099891010164
MPN:
794616-8
0-0794616-8

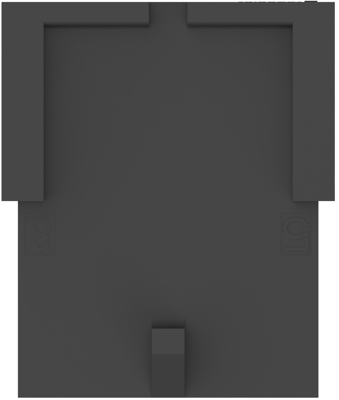

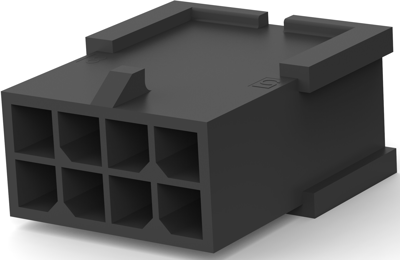

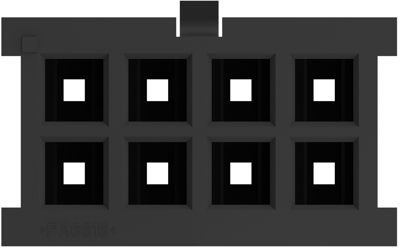

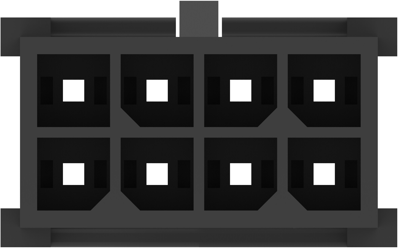

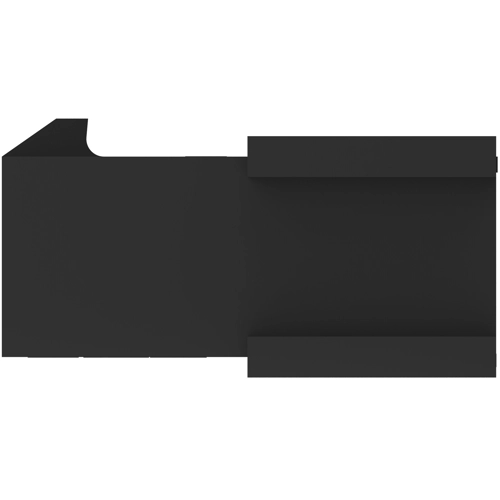

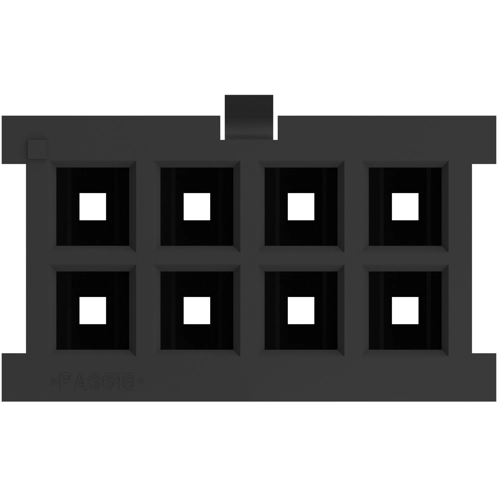

794616-8 AMP PCB Connection Systems Image 1
794616-8 AMP PCB Connection Systems Image 2
794616-8 AMP PCB Connection Systems Image 3
794616-8 AMP PCB Connection Systems Image 4
794616-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5712 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5712 €
10 pcs.
0.5355 €
25 pcs.
0.4998 €
50 pcs.
0.4522 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connectors, 2- to 24-pole, 3.0 mm grid, type TE Connectivity/AMP Micro Mate-N-Lok.

3.0 mm grid, single- and dual-row; Rated voltage: 250 V. Rated current: max. 5.0 A. Insulation resistance: min. 1000 Mohm. Contact resistance: max. 20 mohm. Insertion force (pro contact): 6.67 N. Operating temperatures: –40 to +105 °C. Certifications: UL, CSA.

Male connector housings, dual-row, bare, type ..-794.

Made of Nylon, flame retardant to UL 94 V-0.

Technical attributes (type, number of poles, length): 0-0794616-8, 8-pole, 12.85 mm

Technical specifications
Filter Property Value
Grid 3 mm
Contact type pin
Version plug housing
Rated current 5 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 2
Colour black
Pin number 8 pole
Connection crimp connection
Logistics
Property Value
Country of origin MX
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
