794594-8 | AMP

Socket housing, 8 pole, pitch 4.2 mm, straight, white, 794594-8

Order No.: 72P1438
EAN: 4099891739713
MPN:
794594-8
Series: AMPMODU

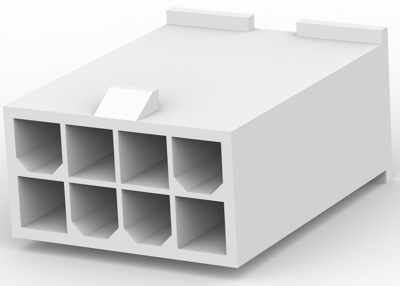

794594-8 AMP PCB Connection Systems Image 1

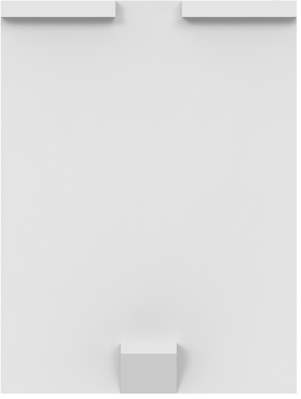

794594-8 AMP PCB Connection Systems Image 2

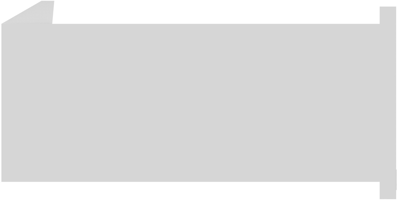

794594-8 AMP PCB Connection Systems Image 3

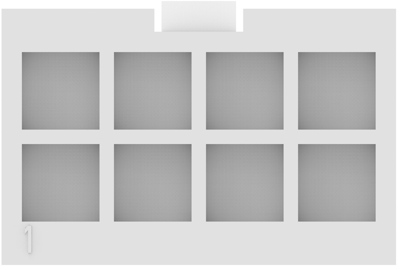

794594-8 AMP PCB Connection Systems Image 4

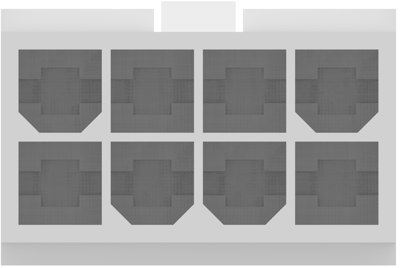

794594-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4046 € *
Available in 5 Days: 784 pcs. - if ordered today
Total Price:
202.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
0.4046 €

Power connector, 794594-8, AMP

The 794594-8 provides for low insertion force, yet maintains high-performance current capacity. ormance current capacity.

Features

  • Designed for power applications
  • Anti-stubbing contact design
  • Polarized housing
Technical specifications
Colour white
Type of locking Yes
Rated current 9 A
Grid 4.2 mm
Pin number 8 pole
Version socket housing
Orientation straight
Connection crimp connection
Contact type pin
Rated voltage 600 V
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
