794550-4 | AMP

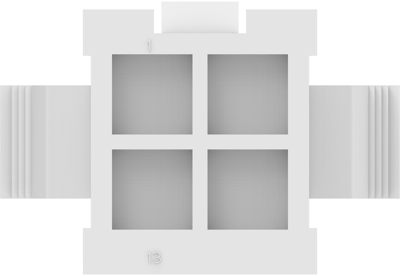

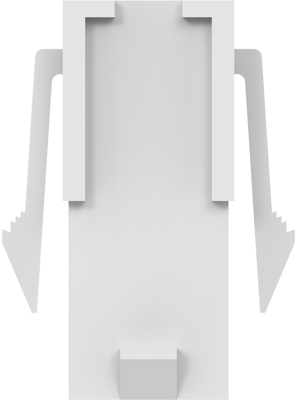

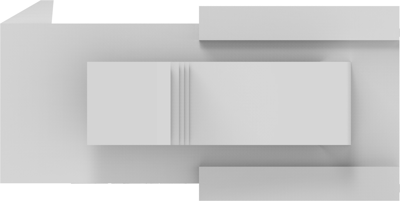

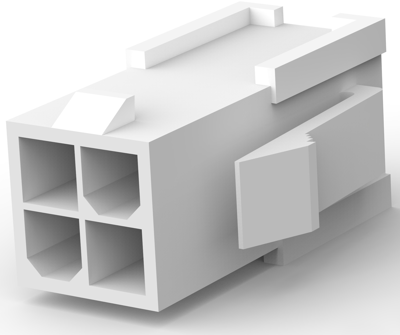

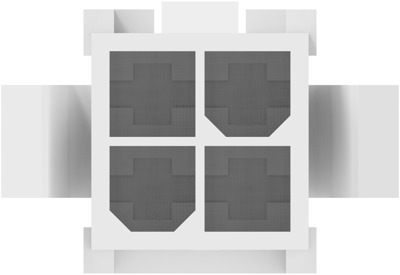

Plug housing, 4 pole, pitch 4.2 mm, straight, natural, 794550-4
Unit Price (€ / pc.)
1.2733 € *
Available: 0 pcs.
Available in 5 Days: 8,898 pcs.
Leadtime: 24 Weeks **
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2733 €
10 pcs.
1.1424 €
50 pcs.
1.0353 €
100 pcs.
0.9282 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 794550-4, AMP
Wire-to-Panel, Wire-to-Wire, 4 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Nylon, Nylon 6/6
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- Sealable: No
Technical specifications
| Colour | natural | |
| Type of locking | Yes | |
| Rated current | 9 A | |
| Grid | 4.2 mm | |
| Pin number | 4 pole | |
| Version | plug housing | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | pin | |
| Rated voltage | 600 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
