794285-1 | AMP

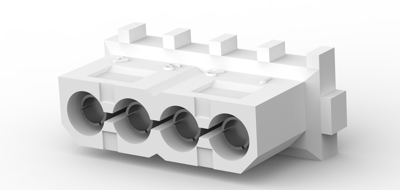

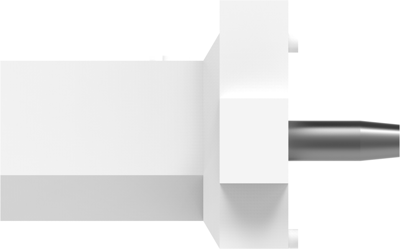

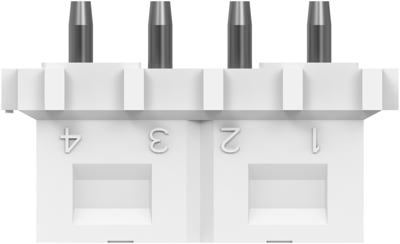

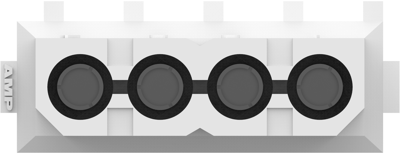

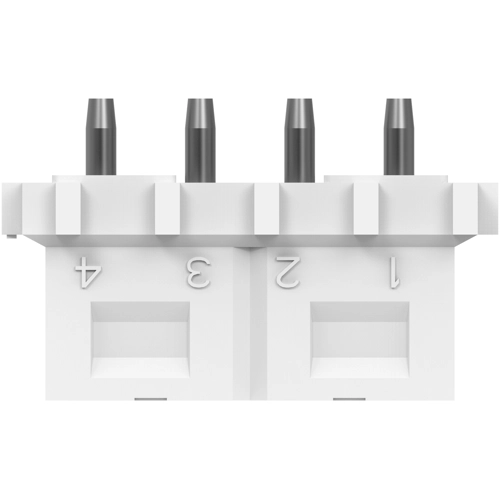

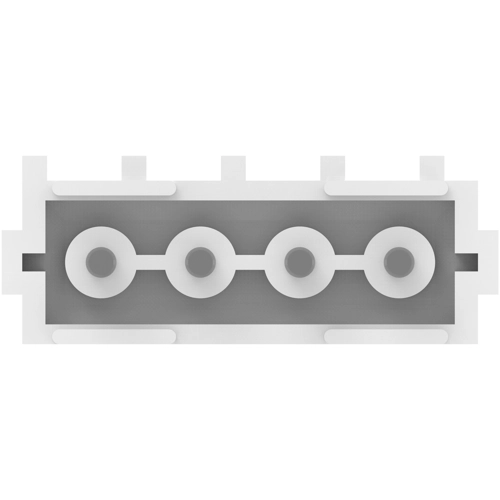

Pin header, 4 pole, pitch 5.08 mm, straight, natural, 794285-1
Unit Price (€ / pc.)
2.261 € *
Available: 0 pcs.
Available in 5 Days: 2,140 pcs.
Leadtime: 21 Weeks **
PCB Connection System, 794285-1, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 4 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 12 A
- Centerline (Pitch): 5.08 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Colour | natural | |
| Type of locking | Yes | |
| contact surface | pre-tinned | |
| Rated current | 12 A | |
| Grid | 5.08 mm | |
| Connection plating | pre-tinned | |
| Pin number | 4 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | solder pin | |
| Contact type | socket | |
| Rated voltage | 250 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
