794245-1 | AMP

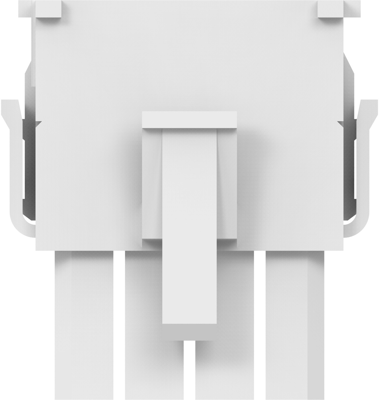

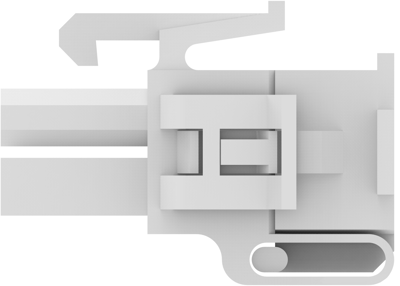

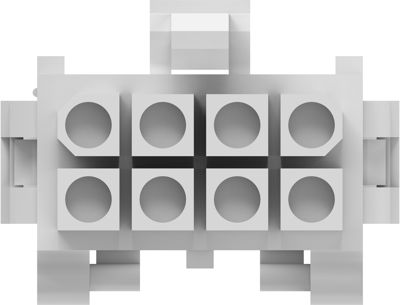

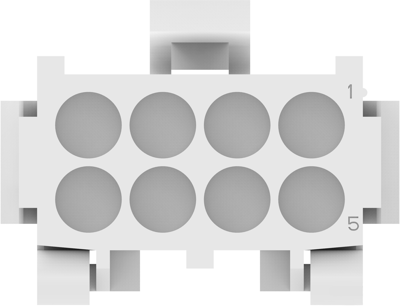

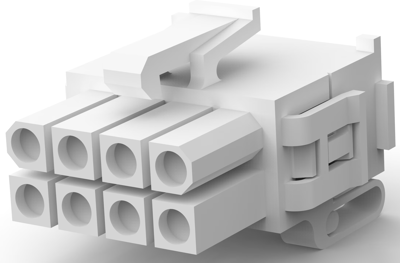

Plug housing, 8 pole, pitch 4.14 mm, straight, natural, 794245-1
Order No.: 34P9704
EAN: 4099889920772
MPN:
794245-1
Unit Price (€ / pc.)
1.4161 € *
Available in 5 Days: 600 pcs. - if ordered today
PCB Connection System, 794245-1, AMP
Wire-to-Board, Wire-to-Wire, Wire & Cable, 8 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 8
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 4.14 mm
- Row-to-Row Spacing: 4.14 mm [0.162 in]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 4.14 mm | |
| Contact type | socket/pin | |
| Additional parts | unequipped | |
| Colour | natural | |
| Rated current | 9.5 A | |
| Number of rows | 2 | |
| Connection | crimp connection | |
| Pin number | 8 pole | |
| Orientation | straight | |
| Version | plug housing | |
| Type of locking | Yes | |
| Rated voltage | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
