794208-1 | AMP

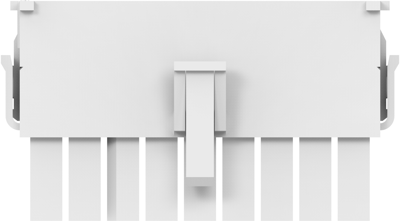

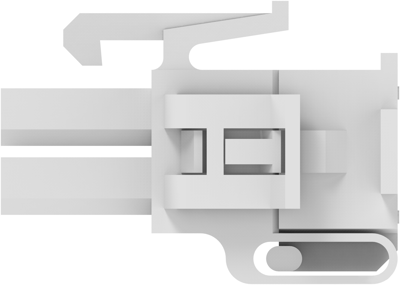

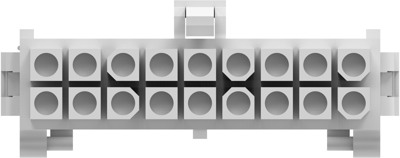

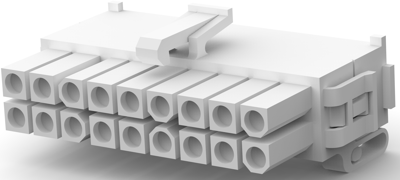

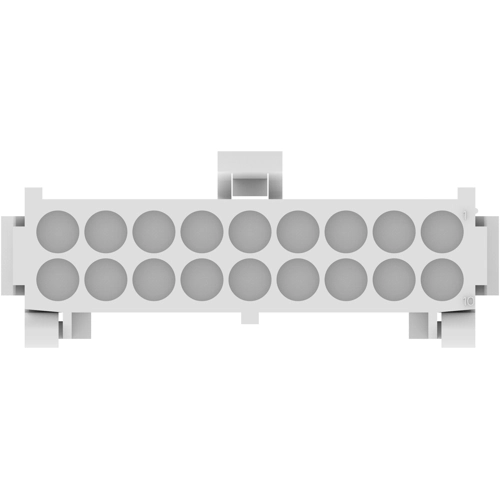

Plug housing, 18 pole, pitch 4.14 mm, straight, natural, 794208-1
Unit Price (€ / pc.)
5.1289 € *
Available in 5 Days: 1,372 pcs. - if ordered today
Total Price:
5.13 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1289 €
10 pcs.
4.7600 €
25 pcs.
4.4387 €
50 pcs.
4.0341 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 794208-1, AMP
Wire-to-Board, Wire-to-Wire, Wire & Cable, 18 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 18
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 4.14 mm
- Row-to-Row Spacing: 4.14 mm [0.162 in]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug housing | |
| Colour | natural | |
| Type of locking | Yes | |
| Pin number | 18 pole | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Rated voltage | 600 V | |
| Contact type | socket/pin | |
| Rated current | 9.5 A | |
| Orientation | straight | |
| Grid | 4.14 mm | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
