794186-1 | AMP

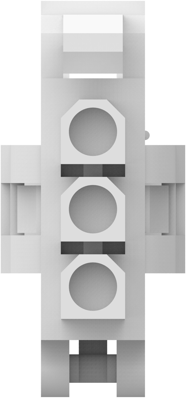

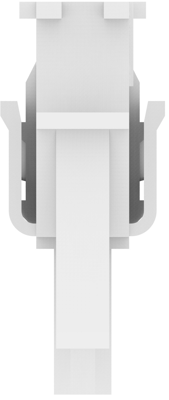

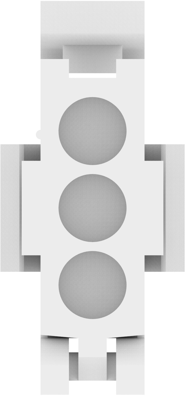

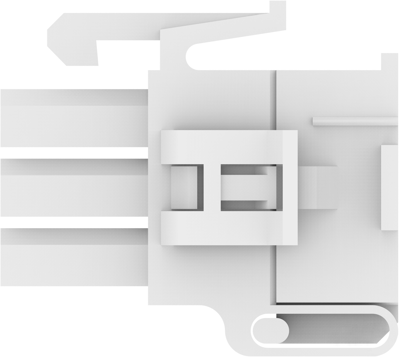

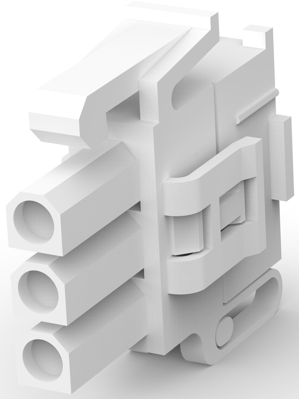

Plug housing, 3 pole, pitch 4.14 mm, straight, natural, 794186-1
Unit Price (€ / pc.)
0.9996 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
1.00 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9996 €
10 pcs.
0.9044 €
50 pcs.
0.8092 €
100 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 794186-1, AMP
Wire-to-Board, Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 4.14 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Colour | natural | |
| Contact type | socket/pin | |
| Additional parts | unequipped | |
| Rated current | 9.5 A | |
| Rated voltage | 600 V | |
| Pin number | 3 pole | |
| Orientation | straight | |
| Version | plug housing | |
| Type of locking | Yes | |
| Grid | 4.14 mm |
Download
Logistics
| Customs tariff number | 85472000 |
| Country of origin | US |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
