794036-3 | AMP

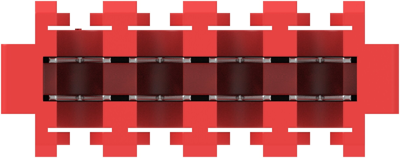

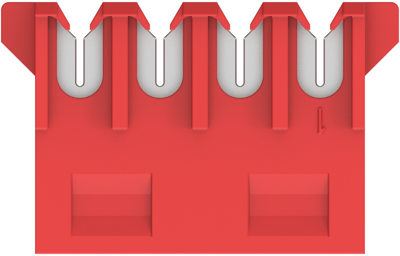

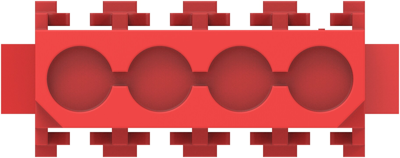

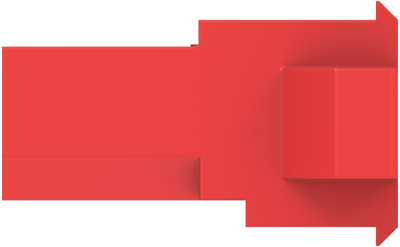

Socket header, 4 pole, pitch 5.08 mm, straight, red, 794036-3
Unit Price (€ / pc.)
0.714 € *
Standard delivery time from the manufacturer is: 19 Weeks
PCB Connection System, 794036-3, AMP
Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: red
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 13 A
- Centerline (Pitch): 5.08 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 13 A | |
| Version | socket header | |
| Number of rows | 1 | |
| Connection | IDC connection | |
| Contact type | socket | |
| Additional parts | equipped | |
| Grid | 5.08 mm | |
| Pin number | 4 pole | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Type of locking | Yes | |
| Connection plating | tin-plated | |
| Colour | red |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
