794036-1 | AMP

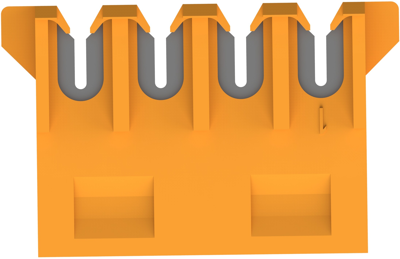

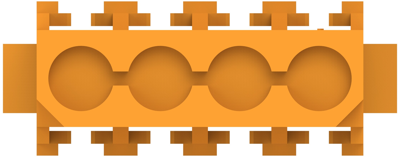

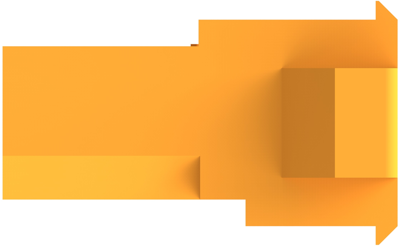

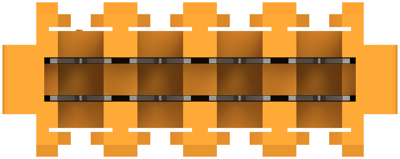

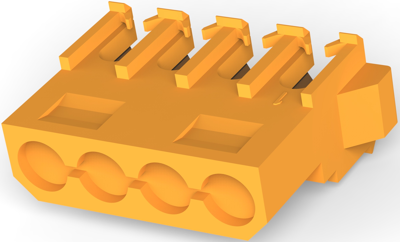

Socket header, 4 pole, pitch 5.08 mm, straight, orange, 794036-1
Unit Price (€ / pc.)
2.8798 € *
Available in 5 Days: 678 pcs. - if ordered today
Total Price:
2.88 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8798 €
10 pcs.
2.6775 €
25 pcs.
2.4990 €
50 pcs.
2.2729 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 794036-1, AMP
Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: orange
- Number of positions: 4
- Operating Temperature Range: -67 – 221 °C [-67 – 221 °F]
- Rated current: 13 A
- Centerline (Pitch): 5.08 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Connection | IDC connection | |
| Colour | orange | |
| Additional parts | equipped | |
| Pin number | 4 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Type of locking | Yes | |
| Rated voltage | 250 V | |
| contact surface | tin-plated | |
| Version | socket header | |
| Rated current | 13 A | |
| Number of rows | 1 | |
| Grid | 5.08 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
