770586-1 | AMP

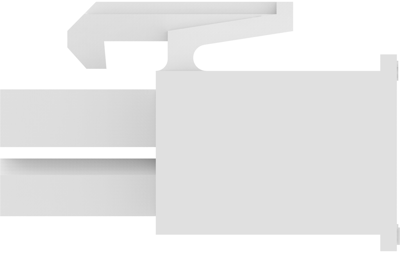

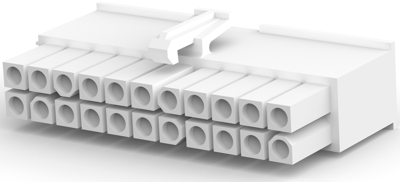

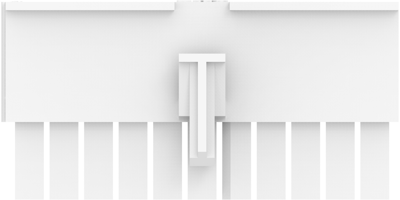

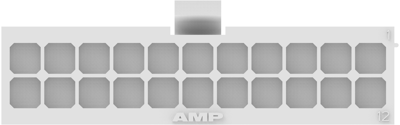

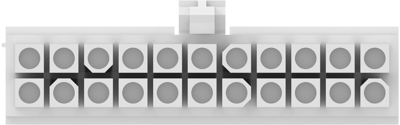

Plug housing, 22 pole, pitch 4.14 mm, straight, white, 770586-1
Unit Price (€ / pc.)
1.8445 € *
Available: 0 pcs.
Available in 5 Days: 1,155 pcs.
Leadtime: 21 Weeks **
PCB Connection System, 770586-1, AMP
Wire-to-Wire, Wire & Cable, 22 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: white
- Number of positions: 22
- Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
- Centerline (Pitch): 4.14 mm
- Row-to-Row Spacing: 4.14 mm [0.162 in]
- Sealable: No
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | Steckergehäuse | |
| Additional parts | unbestückt | |
| Colour | weiß | |
| Contact type | Buchse/Stift | |
| Rated voltage | 600 V | |
| Rated current | 9.5 A | |
| Orientation | gerade | |
| Pin number | 22-polig | |
| Grid | 4.14 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
