770580-1 | AMP

Plug housing, 10 pole, pitch 4.14 mm, straight, white, 770580-1

Order No.: 34P9570
EAN: 4099889920253
MPN:
770580-1

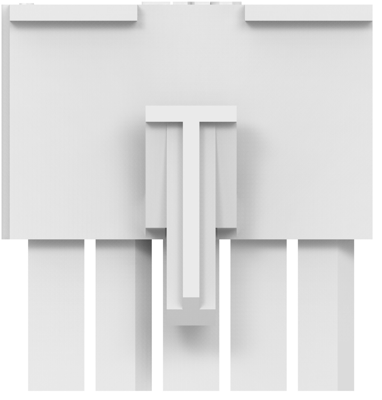

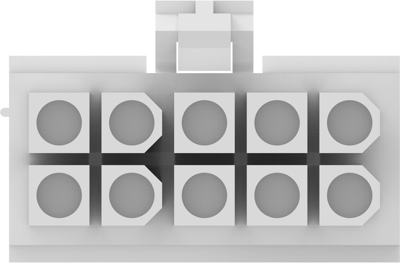

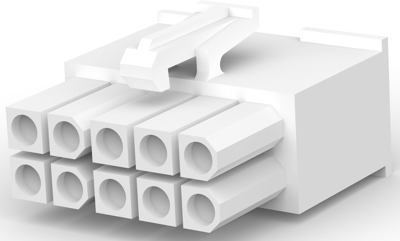

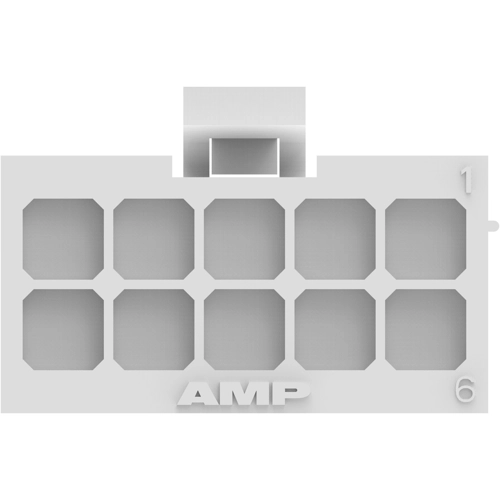

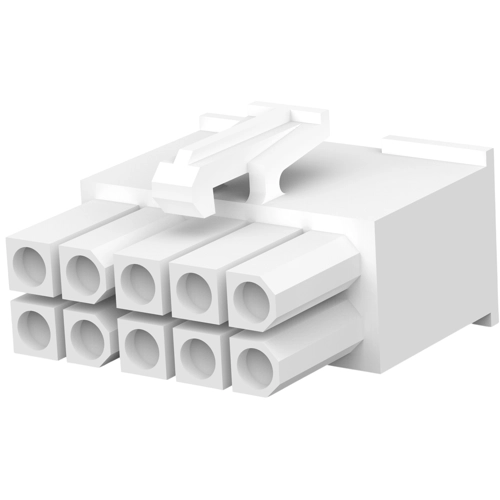

770580-1 AMP PCB Connection Systems Image 1
770580-1 AMP PCB Connection Systems Image 2
770580-1 AMP PCB Connection Systems Image 3
770580-1 AMP PCB Connection Systems Image 4
770580-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9996 € *
Available in 5 Days: 800 pcs. - if ordered today
Total Price:
1.00 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9996 €
10 pcs.
0.9044 €
50 pcs.
0.8092 €
100 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 770580-1, AMP

Wire-to-Wire, Wire & Cable, 10 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: white
  • Number of positions: 10
  • Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
  • Centerline (Pitch): 4.14 mm
  • Row-to-Row Spacing: 4.14 mm [0.162 in]
  • Sealable: No
Technical specifications
Colour white
Type of locking Yes
Rated current 9.5 A
Grid 4.14 mm
Pin number 10 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket/pin
Rated voltage 600 V
Number of rows 2
Logistics
Country of origin CZ
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
