770442-1 | AMP

Socket housing, 4 pole, pitch 3.68 mm, straight, natural, 770442-1

Order No.: 34P6780
EAN: 4099889913200
MPN:
770442-1

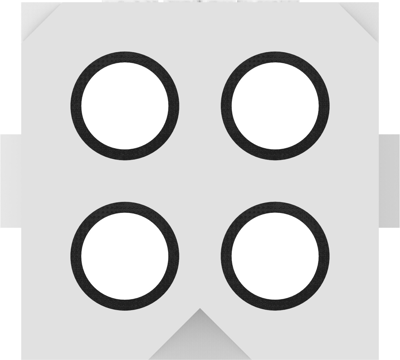

770442-1 AMP PCB Connection Systems Image 1

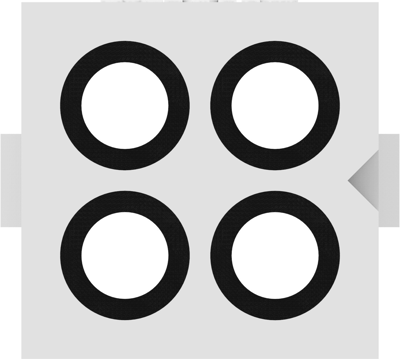

770442-1 AMP PCB Connection Systems Image 2

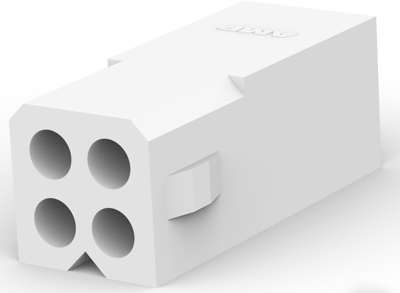

770442-1 AMP PCB Connection Systems Image 3

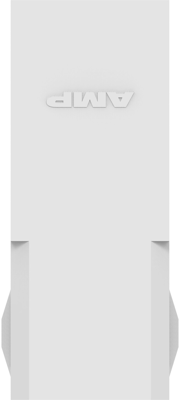

770442-1 AMP PCB Connection Systems Image 4

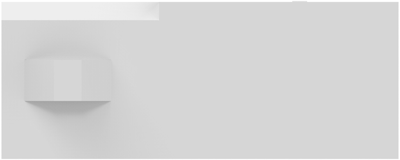

770442-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4641 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
2.32 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4641 €
10 pcs.
0.4284 €
25 pcs.
0.3927 €
50 pcs.
0.3570 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 770442-1, AMP

Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 4
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 3.68 mm
  • Row-to-Row Spacing: 3.68 mm [0.145 in]
  • Sealable: No
  • Contact Layout: Matrix, Square Grid
Technical specifications
Filter Property Value
Grid 3.68 mm
Contact type socket/pin
Version socket housing
Rated current 7 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 2
Colour natural
Pin number 4 pole
Connection crimp connection
Logistics
Property Value
Country of origin CZ
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
