770429-1 | AMP

Socket housing, 9 pole, pitch 3.68 mm, straight, natural, 770429-1

Order No.: 34P6808
EAN: 4099889913460
MPN:
770429-1

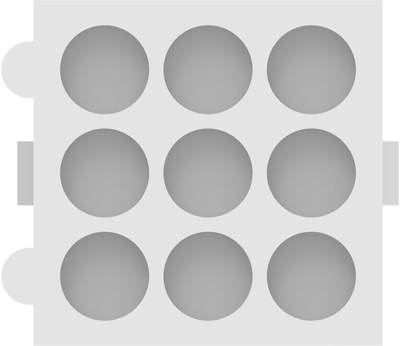

770429-1 AMP PCB Connection Systems Image 1

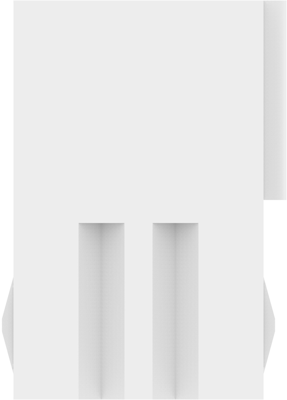

770429-1 AMP PCB Connection Systems Image 2

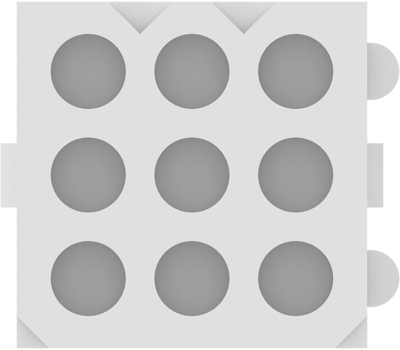

770429-1 AMP PCB Connection Systems Image 3

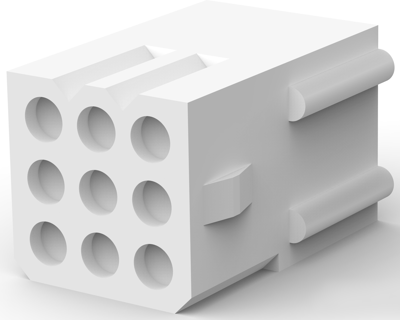

770429-1 AMP PCB Connection Systems Image 4

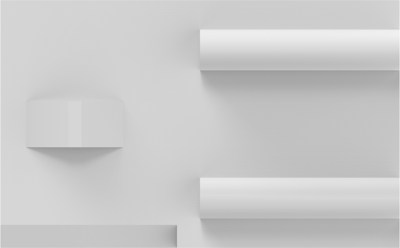

770429-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2321 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
1,392.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
6000 pcs.
0.2321 €

PCB Connection System, 770429-1, AMP

Wire-to-Wire, Wire & Cable, 9 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 9
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 3.68 mm
  • Row-to-Row Spacing: 3.68 mm [0.145 in]
  • Sealable: No
  • Contact Layout: Matrix, Square Grid
Technical specifications
Filter Property Value
Number of rows 3
Rated current 7 A
Contact type socket/pin
Grid 3.68 mm
Pin number 9 pole
Orientation straight
Rated voltage 250 V
Additional parts unequipped
Type of locking Yes
Connection crimp connection
Colour natural
Version socket housing
Logistics
Property Value
Customs tariff number 85472000
Country of origin CZ
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
