770427-1 | AMP

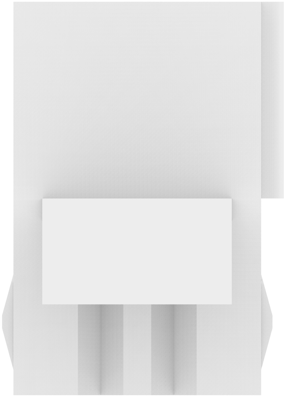

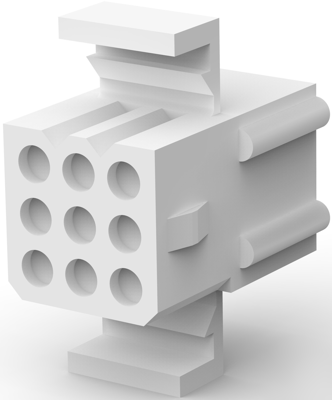

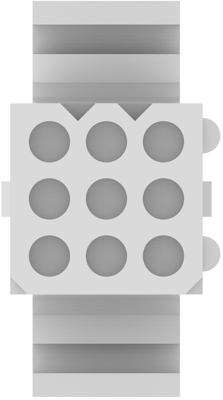

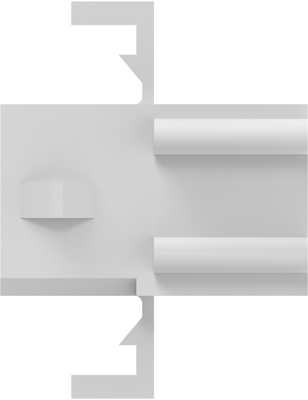

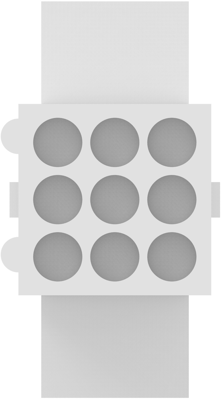

Socket housing, 9 pole, pitch 3.68 mm, straight, natural, 770427-1
Order No.: 34P6809
EAN: 4099889913477
MPN:
770427-1
Unit Price (€ / pc.)
0.3927 € *
Available in 5 Days: 6,128 pcs. - if ordered today
Total Price:
0.39 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3927 €
10 pcs.
0.3451 €
50 pcs.
0.2975 €
100 pcs.
0.2570 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 770427-1, AMP
Wire-to-Wire, Wire & Cable, 9 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging), Panel Mount
- Contact Type: Female/Male
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 9
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 3.68 mm
- Row-to-Row Spacing: 3.68 mm [0.145 in]
- Sealable: No
Technical specifications
| Colour | natural | |
| Type of locking | Yes | |
| Grid | 3.68 mm | |
| Pin number | 9 pole | |
| Version | socket housing | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | socket/pin | |
| Rated voltage | 250 V | |
| Number of rows | 3 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
